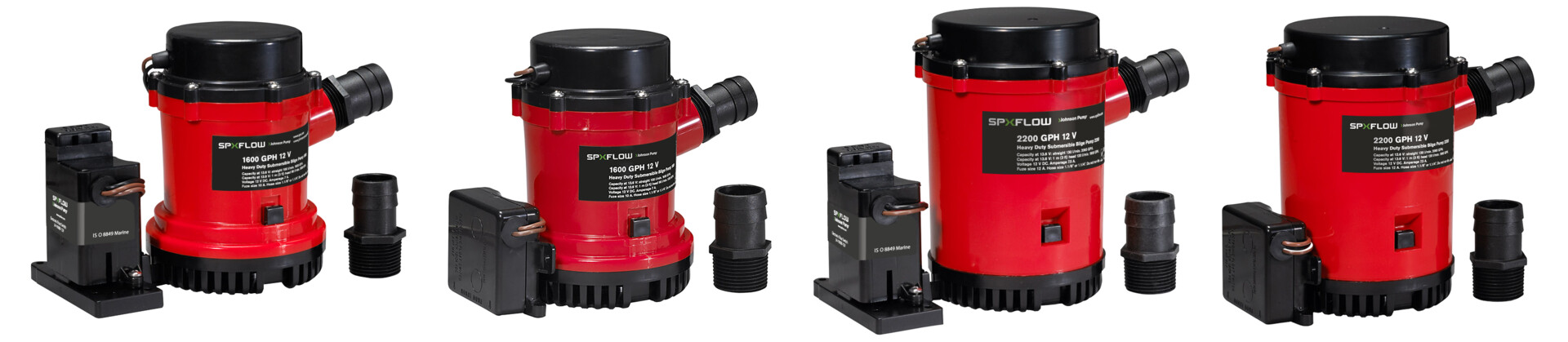

Heavy-Duty Bilge Pump Combo - Automatic Submersible Bilge Pump

Product Type(s) : Bilge Pumps

Description :

Heavy Duty Combo Bilge Pumps are equipped with either the non-clogging electronic switch Ultima Switch or the electro-magnetic float switch or for automatic operation. Designed to meet and exceed the tough demands of commercial and recreational duty.

WHERE TO BUY

Limited 3 Year Warranty
Pre-wired with either the non-clogging electronic switch Ultima Switch (USA + rest of the world) or the Electro-Magnetic Float Switch (USA only) for automatic operation
Capacities of 1600 GPH or 2200 GPH
Liquid cooled, 12-pole motor with double ball bearings for extended service life
2200 GPH motor is sealed off by a mechanical seal design, while the 1600 GPH model has lipseal
Impeller is carefully designed and tested to maximize head and flow
Universal base plate and choice of two different ports makes for a simple installation
Removable check valve included

Material Specifications

	1600	2200
Body	Thermoplastic
Shaft	Stainless steel SS2343
Shaft seal	Lip seal	Mechanical seal carbon/ceramic

Technical Data

Part No.	Part No. USA	Description	Capacity straight (13.6V/27.2V)	Capacity 3ft (1.0 m) head (13.6V/27.2V)	Voltage	Amperage	Fuse Size	Connection	Wire size
*	01604-00	Heavy Duty Bilge Pump 1600 GPH, Combo 12V (with Electro-Magnetic Switch)	98 L/min – 1550 GPH	100 L/min – 1600 GPH	12 V	7 A	10 A	1⅛" & 1¼"	16 GA (1.3mm²)
*	01604-002	Heavy Duty Bilge Pump 1600 GPH, Combo 24V (with Electro-Magnetic Switch)	98 L/min – 1550 GPH	100 L/min – 1600 GPH	24 V	3.5 A	6 A	1⅛" & 1¼"
32-1600UC-01	01674-001	Heavy Duty Bilge Pump 1600 GPH, Ultima 12V (with Ultima Switch)	98 L/min – 1550 GPH	100 L/min – 1600 GPH	12 V	7 A	10 A	1⅛" & 1¼"
32-1600UC-02	01674-002	Heavy Duty Bilge Pump 1600 GPH, Ultima 24V (with Ultima Switch)	98 L/min – 1550 GPH	100 L/min – 1600 GPH	24 V	3.5 A	6 A	1⅛" & 1¼"
*	02204-00	Heavy Duty Bilge Pump 2200 GPH, Combo 12V (with Electro-Magnetic Switch)	120 L/min – 1900 GPH	130 L/min – 2060 GPH	12 V	7.5 A	12 A	1⅛" & 1¼"
*	02204-002	Heavy Duty Bilge Pump 2200 GPH, Combo 24V (with Electro-Magnetic Switch)	120 L/min – 1900 GPH	130 L/min – 2060 GPH	24 V	4.5 A	6 A	1⅛ & 1¼"
32-2200UC-01	02274-001	Heavy Duty Bilge Pump 2200 GPH, Ultima 12V (with Ultima Switch)	120 L/min – 1900 GPH	130 L/min – 2060 GPH	12 V	7.5 A	12 A	1⅛" & 1¼"
32-2200UC-02	02274-002	Heavy Duty Bilge Pump 2200 GPH, Ultima 24V (with Ultima Switch)	120 L/min – 1900 GPH	130 L/min – 2060 GPH	24 V	4.5 A	6 A	1⅛" & 1¼"
* not available outside of the USA
