Flexible Impeller Pumps - AC

Product Type(s) : Flexible Impeller Pumps
Industries : Recreational Marine
Description :

Through their versatility and flexible design, these AC-powered Flexible Impeller Pumps can be customized uniquely for each area of application. The pumps handle most liquids and slurries. In the marine environment, the pumps are especially suitable for the bilge, wash down, fire fighting, septic handling, and water circulation duties.
WHERE TO BUY

FEATURES

Advantages of FIP

Excellent self-priming capacity A dry pump has a suction lift up to 5 meters within a few seconds
Pulsation free and reversible flow The FIP-pump gives a uniform flow without pulsation
Compact design The FIP has minimal outer dimensions compared to its capacity, which simplifies space and installation requirements
Easy maintenance and quick to clean Unique 3-piece design reduces maintenance and cleaning time to a minimum
FIP Stainless Steel
Where To Buy

The FIP Stainless Steel line allows for a wide range of pump capacities for both hygenic and non-hygenic applications.



FIP40SI Technical Data

Suitable for discharge of septic tank. Motor sold separately.*

Part No. Description Body Connection Impeller Shaft Shaft seal Shaft end
To be Configured FIP40SI- BSP02M01F90 Stainless steel BSP Neoprene Double flat Mechanical Flange



* Motors for the FIP pumps are available as 4-, 6- or 8-pole with speeds between 700-1450 rpm.

FIP Bronze

Bronze pump for liquids such as saltwater, mineral oils, slurries, additives or abrasive products.

FIP25B Technical Data

Suitable for wash down, bilge, water circulation, etc. Motor sold separately.*

Part No. Description Body Connection Impeller Shaft Shaft seal Shaft end
To be Configured FIP25B- BSP00M01F80 Bronze BSP Neoprene Double flat Mechanical Flange



FIP40B Technical Data

Suitable for wash down, bilge, water circulation, firefighting reserve, etc. Motor sold separately.*

Part No. Description Body Connection Impeller Shaft Shaft seal Shaft end
To be Configured FIP40B- BSP00M01F90 Bronze BSP Neoprene Double flat Mechanical Flange



* Motors for the FIP pumps are available as 4-, 6- or 8-pole with speeds between 700-1450 rpm.



Where To Buy

DIMENSIONS & SPECIFICATIONS

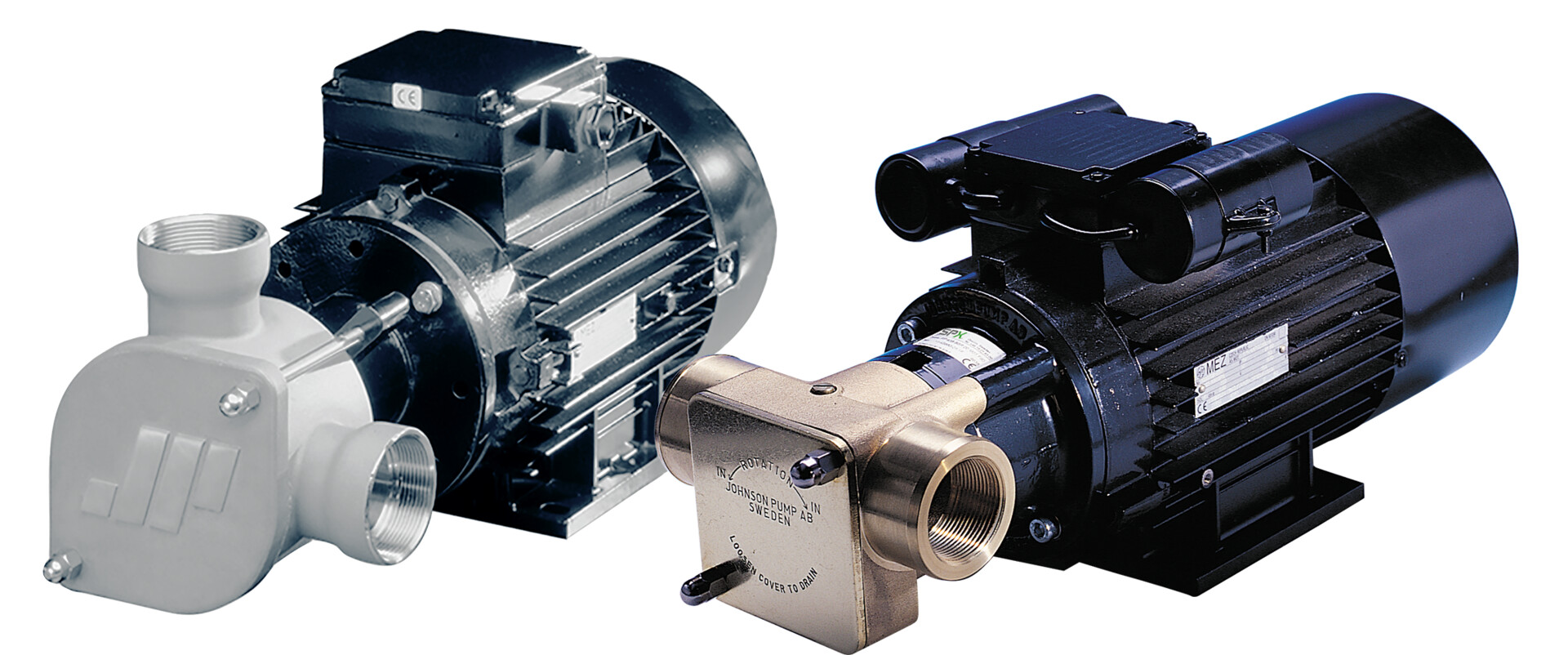

  • Stainless Steel and Bronze models
  • The capacities range from 20 l/min to 490 l/min
  • The pumps are characterized by their ease of service and maintenance
  • For 3-phase power source we offer the FIP20, FIP25, FIP40, FIP50 and the FIP65. Additionally, the FIP20, FIP25 and the FIP40 are available for single-phase power

  See this product in the Johnson Pump Marine Catalog:  GB ‖ DE ‖ FI ‖ SV

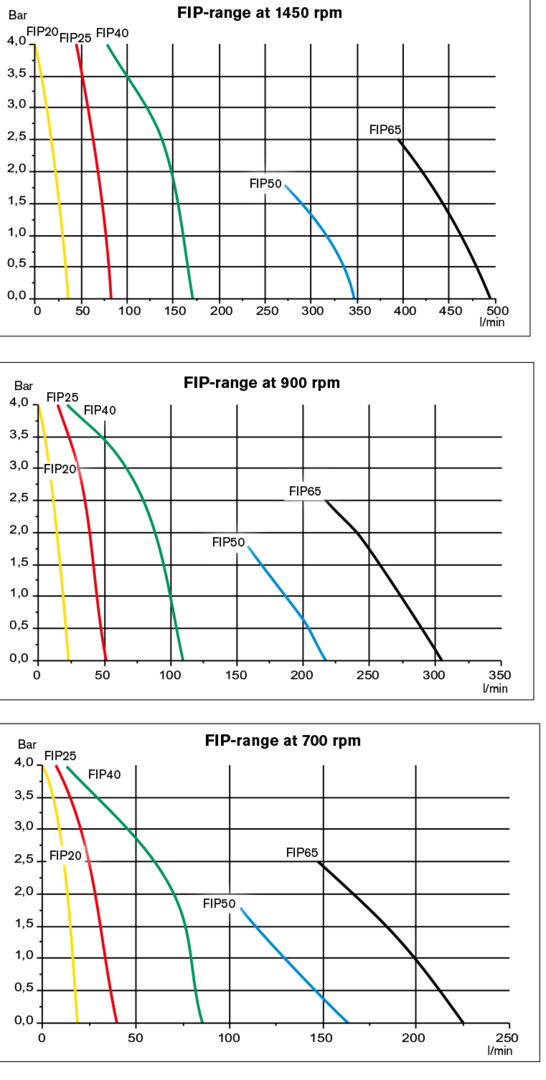

OPTIONS & PERFORMANCE
