Flexible Impeller Pump Accessories

Model :
Product Type(s) :
Series :
Description :

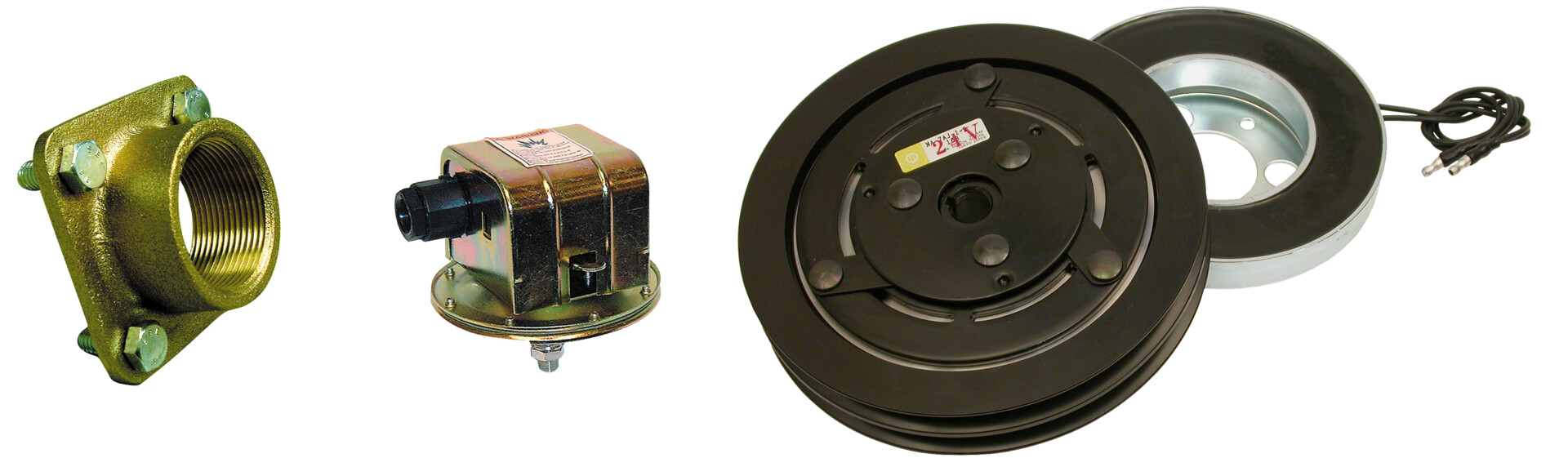

Port Adapter Kit

For converting the flanges of the TSS (The Space Saver) and VF (Vertical Flange) variants to threaded connectors.



Part numbers

Part No. Description
09-43112 1½" BSP for F8B-3000/5000-VF, F8B-3000/5000-TSS
09-46557-01 2" BSP for F9B-3000/5600-VF and F9B-3000/5600-TSS
09-45562 1½" NPT for F8B-3000/5000-VF, F8B-3000/5000-TSS
09-46557-02 2" NPT for F9B-3000/5600-VF and F9B-3000/5600-TSS



See this product in the Johnson Pump Marine Catalog:  US ‖ GB  ‖ DE ‖ ES ‖  FI ‖  SV

Vacuum Switch

For automatic shut-off operation to prevent pump damage. The vacuum switch works with all self-priming impeller pumps to prevent dry running when emptying tanks or bilge pumping. The vacuum switch automatically shuts the pump off when the bilge/tank is dry. With the switch fitted, you can start the pump by a remote push button or manually by depressing a lever on the switch.



Part number

Part No. Description
09-45053 Vacuum Switch



Manual: EN, DE, ES, FR, IT, SV



See this product in the Johnson Pump Marine Catalog:  US ‖ GB  ‖ DE ‖ ES ‖  FI ‖  SV

Clutch and Pulleys

Selection of Clutches and type of Pulley for your Johnson Pump Electro-Magnetic Clutch Pumps.



Part numbers

Part No. Description
0.3454.001 Electro-Magnetic Clutch, 12V 2xA 7" Pulley
0.3454.002 Electro-Magnetic Clutch, 24V 2xA 7" Pulley
0.3454.003 Electro-Magnetic Clutch, 12V 1xB 7" Pulley
0.3454.004 Electro-Magnetic Clutch, 24V 1xB 7" Pulley
0.3454.050 Coil 12V
0.3454.051 Coil 24V



See this product in the Johnson Pump Marine Catalog:  US ‖ GB  ‖ DE ‖ ES ‖  FI ‖  SV
