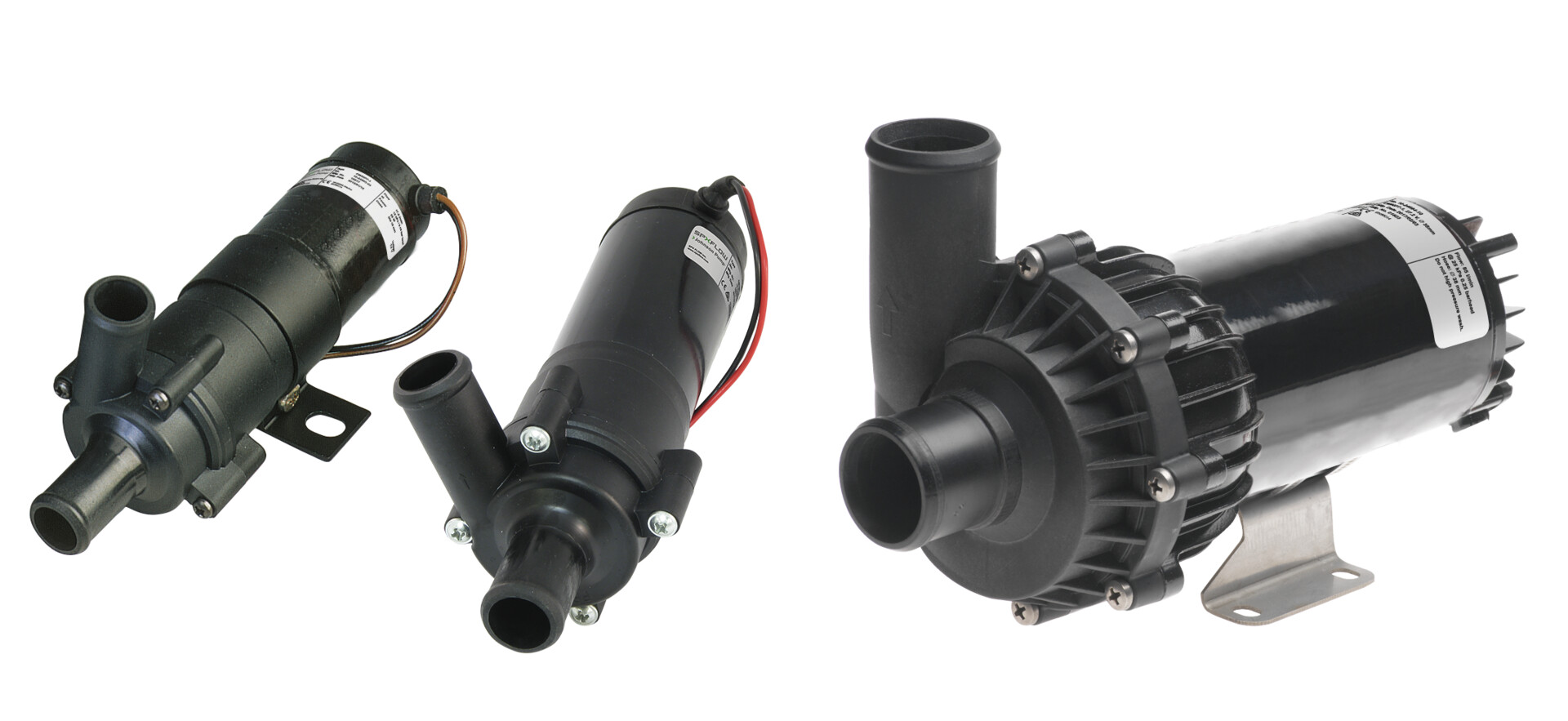

CM Magnetically-Driven Circulation Pumps - with Brush Motor
Product Type(s) : Circulation Pumps
Industries : Recreational Marine
Industries : Recreational Marine
Description :
WHERE TO BUY
Heavy Duty Magnetically Driven, Seal-Less Circulation Pumps with Brushed motors for continuous use. Compact and powerful, ideal for circulation duties such as: Circulation of water/antifreeze in heating system for cars, boats, recreation vehicles, etc.; Circulation for cooling fresh water in vehicles; All-round pumps wherever self-priming is not essential
FEATURES
- Limited 2 Year Warranty
- The CM-series pumps are normal-priming centrifugal pumps and should be mounted in a manner that ensures that they are always flooded or else be primed before being switched on.
-
The pumps should not be used for soiled water containing hard particles.
CAUTION! Do not pump gasoline, solvents, thinners, highly concentrated or organic acids. If corrosive fluids must be handled, pump life will be prolonged if flushed with water after each use or after each work day.
Material Specifications
| Pump Body | PPA, Thermoplastic |
| Impeller | PPA, Thermoplastic |
| Shaft | Stainless Steel |
| Motor | 12/24V DC enclosed (as per IP67) permanent magnet, ball bearing mounted motor, designed for continuous operation |
| Liquid | Water/glycol mixture; max. 60% glycol, fresh water |
Technical Data
| Liquid temp. | Min. -40°C Max. +100°C (Min. -40°F Max. 212°F) |
| System pressure | 2.5 bar max (36 psi) |
| Port size | Ø 16 mm (⅝") or 20 mm (¾") hose |
| Dry running | Max. 30 minutes |
| Input Power | Max. 14W |
| Mounting | Separate universal bracket for flat surfaces |
CM10 Circulation Pump Specifications
| Part No. | Voltage | Description | Port Size | Capacity 0.1 bar (3.4 ftH2O) |
Flexible Cord - Spare Part |
| 10-24501-03 | 12V | CM10P7-1 | Ø16 mm (⅝”) | 15 l/min (4 GPM) | |
| 10-24501-04 | 24V | ||||
| 10-24502-03 | 12V | CM10P7-1 | Ø20 mm (¾”) | 18,5 l/min (5 GPM) | |
| 10-24502-04 | 24V | ||||
| 10-24486-03 | 12V | CM10P7-1 with flexible cord | Ø16 mm (⅝”) | 15 l/min (4 GPM) | 04-36245-01 (12/24V) |
| 10-24486-04 | 24V | ||||
| 10-24487-03 | 12V | CM10P7-1 with flexible cord | Ø20 mm (¾”) | 18,5 l/min (5 GPM) | 04-36245-01 (12/24V) |
| 10-24487-04 | 24V |
Dimensions
| CM10P7-1 | |
| Length | 177 mm – 6.97" |
| Width | 68 mm – 2.68" |
| Height | 85 mm – 3.35" |
| Weight | 0.53 kg – 1.2 lbs |
See this product in the Johnson Pump Marine Catalog: US ‖ GB ‖ DE ‖ ES ‖ FI ‖ SV
Material Specifications
| Pump Body | PPA, Thermoplastic |
| Impeller | PPA, Thermoplastic |
| Shaft | Stainless Steel |
| Motor | 12/24V DC enclosed (as per IP67) permanent magnet, ball bearing mounted motor, designed for continuous operation |
| Liquid | Water/glycol mixture; max. 60% glycol, fresh water |
Technical Data
| Liquid temp. | Min. -40°C Max. +100°C (Min. -40°F Max. 212°F) |
| System pressure | 2.5 bar max (36 psi) |
| Port size | Ø 16 mm (⅝") or 20 mm (¾") hose |
| Dry running | Max. 30 minutes |
| Input Power | Max. 27W |
| Mounting | Separate universal bracket for flat surfaces |
CM30 Circulation Pump Specifications
| Part No. | Voltage | Description | Port Size | Capacity 0.1 bar (3.4 ftH2O) |
Flexible Cord - Spare Part |
| 10-24503-03 | 12V | CM30P7-1 | Ø16 mm (⅝”) | 20 l/min (5.3 GPM) | |
| 10-24503-04 | 24V | ||||
| 10-24504-03 | 12V | CM30P7-1 | Ø20 mm (¾”) | 26 l/min (6.9 GPM) | |
| 10-24504-04 | 24V | ||||
| 10-24488-03 | 12V | CM30P7-1 with flexible cord | Ø16 mm (⅝”) | 20 l/min (5.3 GPM) | 04-46249-01 (12V) |
| 10-24488-04 | 24V | 04-36245-01 (24V) | |||
| 10-24489-03 | 12V | CM30P7-1 with flexible cord | Ø20 mm (¾”) | 26 l/min (6.9 GPM) | 04-46249-01 (12V) |
| 10-24489-04 | 24V | 04-36245-01 (24V) |
Dimensions
| CM30P7-1 | |
| Length | 177 mm – 6.97" |
| Width | 68 mm – 2.68" |
| Height | 85 mm – 3.35" |
| Weight | 0.6 kg – 1.3 lbs |
See this product in the Johnson Pump Marine Catalog: US ‖ GB ‖ DE ‖ ES ‖ FI ‖ SV
Material Specifications
| Pump Body | PPA, fibergalss reinforced |
| Impeller | PA 12 |
| Shaft | Stainless Steel |
| Motor | 12/24V DC enclosed (as per IP67) permanent magnet, ball bearing mounted motor, designed for continuous operation |
| Liquid | Water/glycol mixture; max. 60% glycol, fresh water |
Technical Data
| Liquid temp. | Min. -40°C Max. +100°C (Min. -40°F Max. 212°F) |
| System pressure | 2.5 bar max (36 psi) |
| Port size | Ø 20 mm (¾") or 38 mm (1 1/2") hose |
| Dry running | Max. 30 minutes |
| Input Power | Max. 125W |
| Mounting | Separate universal bracket for flat surfaces |
CM90 Circulation Pump Specifications
Ø20 mm (¾")
| Part No. | Description | Capacity 0,1 bar (3.4 ftH2O) | Capacity 0.25 bar (8.4 ftH2O) |
| 10-24750-09 | CM90P7-1 13.6V D20 | 65 l/min (17.2 GPM) | 50 l/min (13.2 GPM) |
| 10-24750-10 | CM90P7-1 27.2V D20 | 65 l/min (17.2 GPM) | 50 l/min (13.2 GPM) |
Ø38 mm (1½")
| Part No. | Description | Capacity 0,1 bar (3.4 ftH2O) | Capacity 0.25 bar (8.4 ftH2O) |
| 10-24664-09 | CM90P7-1 13.6V D38 | 90 l/min (23.7 GPM) | 65 l/min (17.2 GPM) |
| 10-24664-10 | CM90P7-1 27.2V D38 | 90 l/min (23.7 GPM) | 65 l/min (17.2 GPM) |
Dimensions
| Ø20 mm | Ø38 mm | |
| Length | 255 mm - 10" | 253 mm - 9.96" |
| Width | 120 mm - 4.7" | |
| Height | 140.5 mm - 5.5" | 149.5 mm - 5.9" |
| Weight | 3.0 kg - 6.6 lbs | 3.9 kg - 8.6 lbs |
