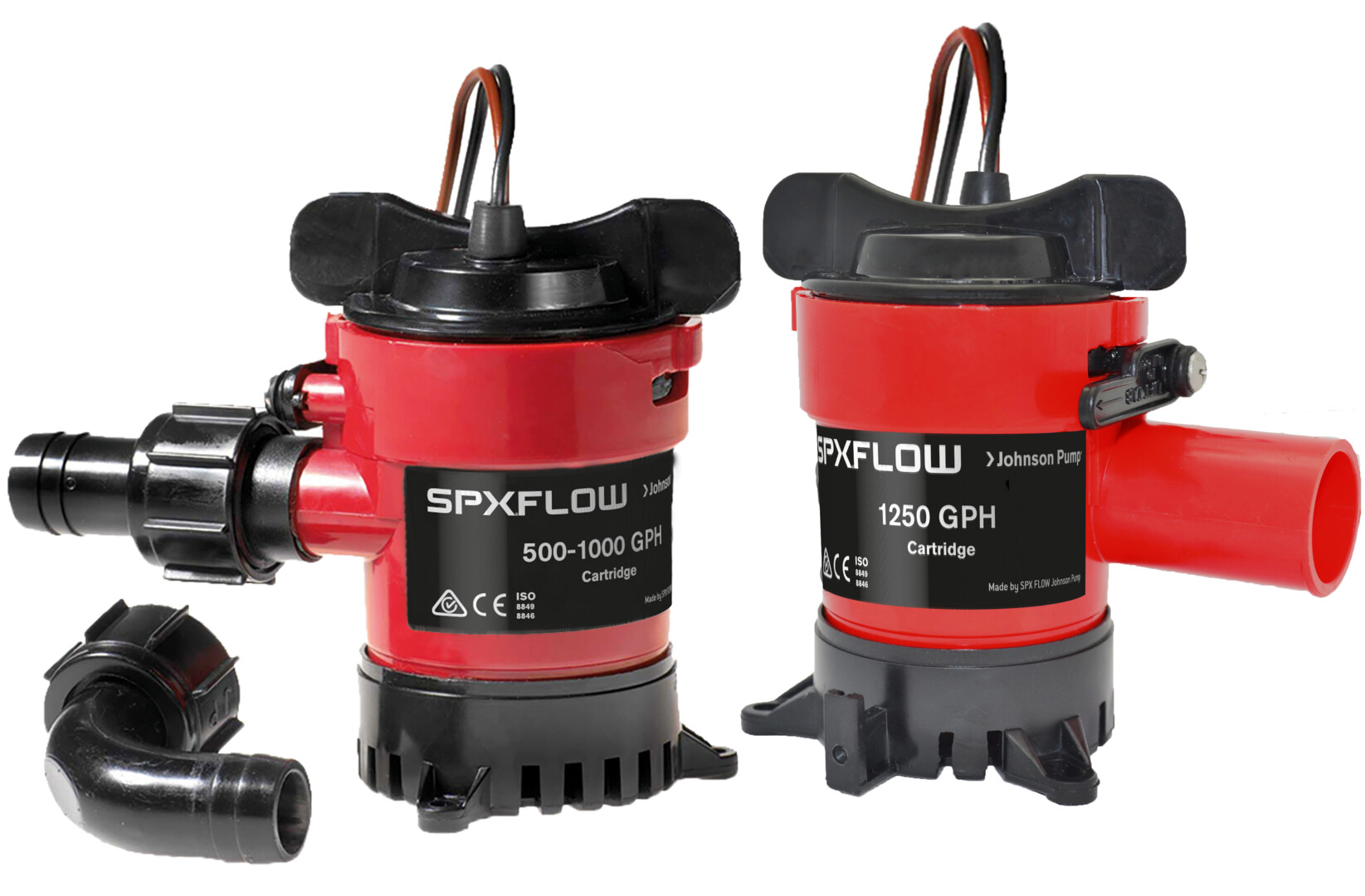

Cartridge - Submersible Bilge Pumps
Product Type(s) : Bilge Pumps
Description :
WHERE TO BUY
Our Cartridge Pumps incorporate some of the most advanced features in the industry, features developed from service in a wide variety of uses including racing, cruising, sport fishing, and demanding commercial duties.
FEATURES
- Limited 3 Year Warranty
- Capacities 500 GPH, 750 GPH, 1000 GPH and 1250 GPH
- Extremely energy efficient
- Water-cooled motor for long service intervals
- Compact, all-in-one motor/impeller unit with stainless steel (SS2343) shaft
- No tools needed for maintenance, no need for complete disassembly. You can now leave the pump casing attached to both the boat and the hoses.
- 500 GPH, 750 GPH, and 1000 GPH pumps have easy-to-install Dura-Port discharge ports to eliminate stress cracking caused by over-tightened hose clamps
- 500 GPH, 750 GPH, and 1000 GPH pumps are delivered including both a straight and a 90° smooth elbow Dura-Port as well as a removable check valve
- 1250 GPH pumps do not include Dura-Port and check valve as the pump housing has a pre-molded 1-1/8” barb fitting to allow maximum flow.
- Meets the international standard, ISO 8849 marine
- Cartridge Pumps can be combined with either an automatic switch AS888, an electronic float switch or the Ultima Switch for automatic operation
Product Specifications
Material Specifications
| Pump body: | Thermoplastic |
| Shaft seal: | Lip seal |
| Shaft: | Stainless steel (SS2343) |
Technical Data
| Part No. | Part No. USA | Description | Capacity 3 ft (0.9 m) head (13.6V/27.2V) | Capacity straight (13.6V/27.2V) | Voltage | Amperage | Fuse Size | Connection | Wire size |
| 32-1450-01 | 32503 | Cartridge Bilge Pump 500 GPH 12V | 33 l/min - 525 GPH | 40 l/min - 630 GPH | 12 V | 2.5 A | 5 A | ¾" | 16 GA (1.3mm2) |
| 32-1550-01 | 32703 | Cartridge Bilge Pump 750 GPH 12V | 44 l/min - 700 GPH | 50 l/min - 800 GPH | 12 V | 3 A | 5 A | ||
| 32-1650-01 | 32903 | Cartridge Bilge Pump 1000 GPH 12V | 50 l/min - 800 GPH | 63 l/min - 1000 GPH | 12 V | 3.2 A | 5 A | ||
| 32-1650-01-24 | 32903-24V | Cartridge Bilge Pump 1000 GPH 24V | 50 l/min - 800 GPH | 63 l/min - 1000 GPH | 24 V | 2 A | 3 A | ||
| 32-1750-01* | 42123* | Cartridge Bilge Pump 1250 GPH 12V | 60 l/min - 952 GPH | 73 l/min - 1150 GPH | 12 V | 3 A | 5 A | 1⅛" | |
| 32-1750-01-24* | 42123-24* | Cartridge Bilge Pump 1250 GPH 24V | 60 l/min - 952 GPH | 73 l/min - 1150 GPH | 24 V | 2 A | 3 A | ||
| * Does not include Dura-Port connection | |||||||||
See this product in the Johnson Pump Marine Catalog: US ‖ GB ‖ DE ‖ ES ‖ FI ‖ SV
Dimensions
| Height (A) | 4.41" (112 mm) |
| Width (B) | 3.46" (88 mm) |
| Width (C) | 3.15" (80 mm) |
| Weight | 0.27 kg – 9.6 oz. 500 GPH – 1000 GPH |
| 0.32 kg – 10.4 oz. 1250 GPH |
