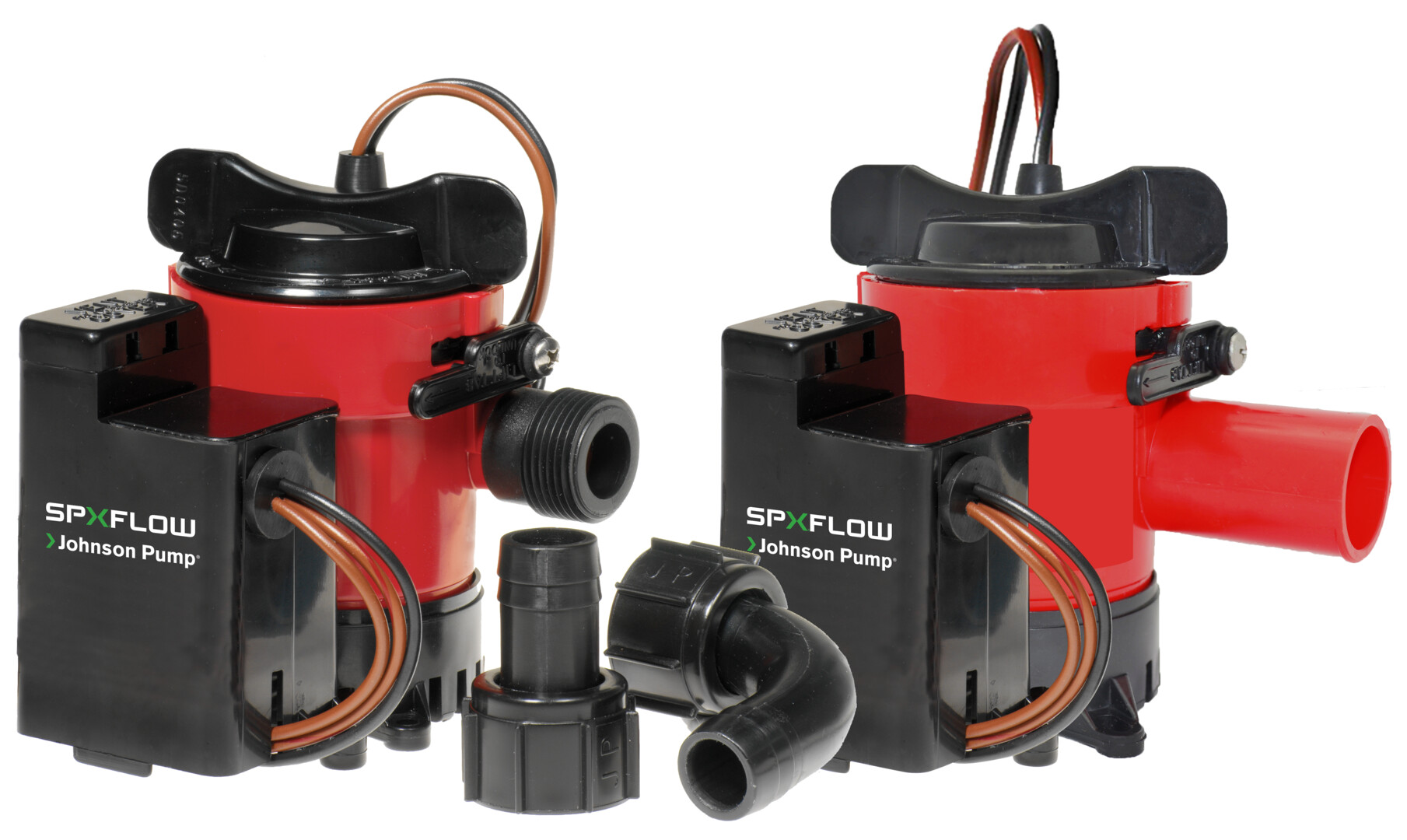

Cartridge Combo - Automatic Submersible Bilge Pump
Product Type(s) : Bilge Pumps
Description :
WHERE TO BUY
Johnson Pump Marine Cartridge Combo bilge pumps are JPM's proven Cartridge Bilge Pumps combined with a non-clogging electro-magnetic float switch for automatic operation. The switch reacts to the level of water present in the bilge and automatically activates and deactivates the pump.
FEATURES
- Limited 3 Year Warranty
- Pre-configured with an electro-magnetic float switch for automatic operation
- Capacities 500 GPH, 750 GPH, 1000 GPH and 1250 GPH
- Energy efficient
- Water-cooled motor for long service intervals
- Compact, all-in-one motor/impeller unit with stainless steel (SS2343) shaft
- No tools needed for maintenance, no need for complete disassembly. You can now leave the pump casing attached to both the boat and the hoses.
- 500 GPH, 750 GPH, and 1000 GPH pumps have easy-to-install Dura-Port discharge ports to eliminate stress cracking caused by over-tightened hose clamps
- 500 GPH, 750 GPH, and 1000 GPH pumps are delivered including both a straight and a 90° smooth elbow Dura-Port as well as a removable check valve
- Meets the international standard, ISO 8849 marine
Product Specifications
Material Specifications
| Pump body: | Thermoplastic |
| Shaft seal: | Lip seal |
| Shaft: | Stainless steel (SS2343) |
Technical Data
| Part No. | Part No. USA | Description | Capacity 3 ft (0.9 m) head (13.6V/27.2V) | Capacity straight (13.6V/27.2V) | Voltage | Amperage | Fuse Size | Connection Hose size | Wire size |
| 32-05503-00 | 05503-00 | Cartridge Combo 500 GPH 12V | 33 l/min - 525 GPH | 40 l/min - 630 GPH | 12 V | 2.5 A | 5 A | ¾" | 16 GA (1.3mm2) |
| 32-05703-00 | 05703-00 | Cartridge Combo 750 GPH 12V | 44 l/min - 700 GPH | 50 l/min - 800 GPH | 12 V | 3 A | 5 A | ¾" | |
| 32-05903-00 | 05903-00 | Cartridge Combo 1000 GPH 12V | 50 l/min - 800 GPH | 63 l/min - 1000 GPH | 12 V | 3.2 A | 5 A | ¾" | |
| 32-06203-00* | 06203-00* | Cartridge Combo 1250 GPH 12V | 60 l/min - 952 GPH | 73 l/min - 1150 GPH | 12 V | 3 A | 5 A | 1⅛" | |
| * Does not include Dura-Port connection | |||||||||
See this product in the Johnson Pump Marine Catalog: US ‖ GB ‖ DE ‖ ES ‖ FI ‖ SV
Dimensions
| Height (A) | 4.41" (112 mm) |
| Width (B) | 4.72" (120 mm) |
| Width (C) | 3.3" (84 mm) |
| Weight | 0.40 kg – 14.4 oz. 500 GPH – 1000 GPH |
| 0.45 kg – 16 oz. 1250 GPH |
