AquaT™ Standard Electric Compact Marine Toilets

FEATURES

Priced competitively, the fine finish and design of these toilets is remarkable. Made from white vitreous porcelain, with corrosion resistant parts, the AquaT marine toilet is quiet, robust and easy to clean. It is probably fair to think of most toilets as commonplace products, but one look at the features and you are sure to see that the AquaT is far from ordinary. Quiet, hygienic and reliable, the AquaT marine toilet is perfect for almost any marine toilet room. Available in three models:

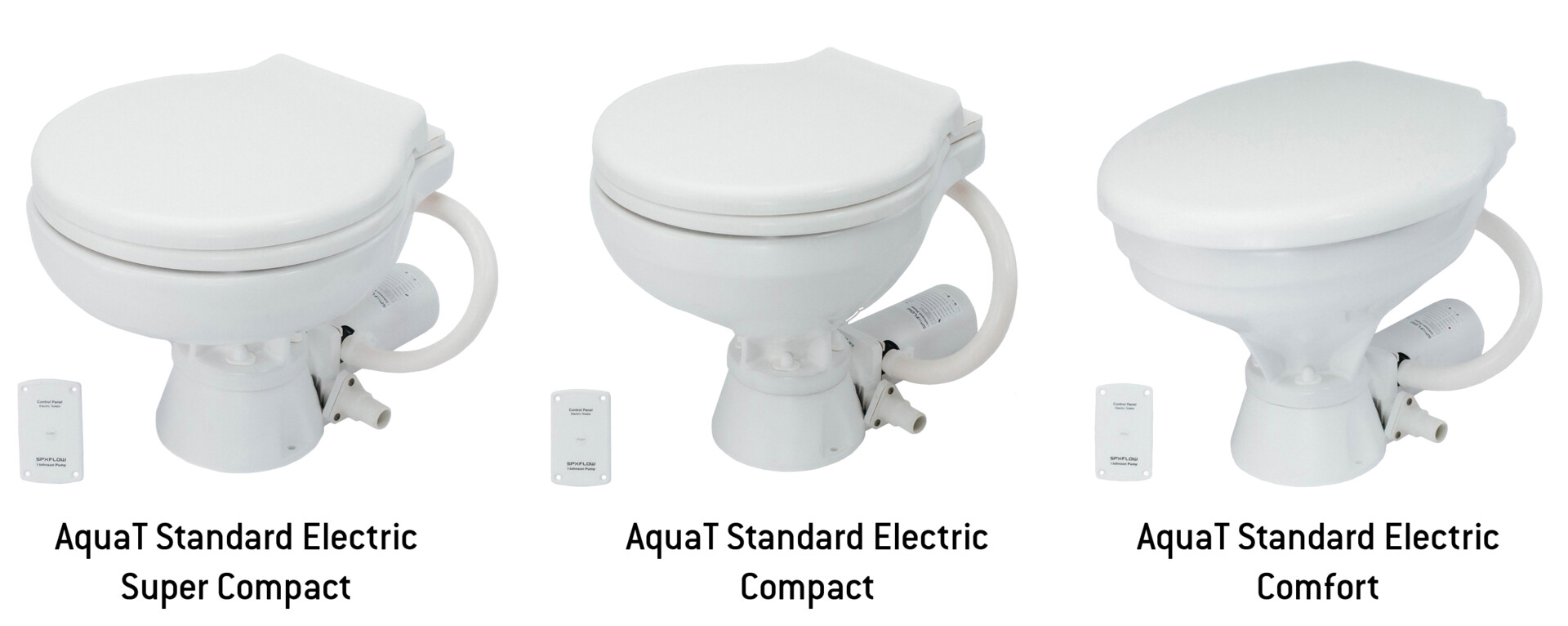

  • Comfort bowl with a larger comfortable oval seat
  • Compact bowl with a round seat - when installation space is limited
  • Super Compact bowl - smaller and lighter bowl, requiring less space



Marine Toilet Features

  • Limited 2 Year Warranty
  • Silent flush and discharge operation
  • Included control panel for rinse and discharge pump; one button multi function discharge and rinse.
  • Flexible hole pattern on the base, for easy substitution with the most common toilets on the market
  • Smooth design for easy cleaning
  • Accessible mounting points for fast installation
  • Standard fastenings, logic located, no need for special tools
  • High capacity discharge pump
  • Built in rinse pump. For raw water or fresh water from separate toilet water tank. Do not connect the toilets rinse pump to the boats fresh/ drinking water system.
Key Applications

The waste can be discharged either overboard (please abide by national or local restrictions), or into a treatment system or into an on-boar holding tank.

Note: SPX FLOW Johnson Pump Standard Electric toilets are designed specifically for marine use. Consult your SPX FLOW Johnson Pump retailer for advice about possible non-marine applications.









Toilet mounted below the waterline and discharging overboard.









Toilet mounted above the waterline and discharging overboard.









Toilet waste discharging into holding tank, discharging elbow below top of the holding tank at any time.









Toilet waste discharging into holding tank, discharging elbow always above top of the holding tank.

  • Specifications
  • Dimensions
  • Performance

Material Specifications

  • Soft closing, durable and hygienic plastic seats made of polypropylene
  • Hygienic white ceramic bowl for ease of cleaning
  • Pump and base molded in ABS or polypropylene, stainless steel fastenings, brass weights and neoprene seals and gaskets



Part numbers

Part No. Description
80-47626-01 AquaT Standard Electric Super Compact. 12V
80-47435-01 AquaT Standard Electric Compact. 12V
80-47435-02 AquaT Standard Electric Compact. 24V
80-47436-01 AquaT Standard Electric Comfort. 12V
80-47436-02 AquaT Standard Electric Comfort. 24V



See this product in the Johnson Pump Marine Catalog:  US ‖ GB  ‖ DE ‖ ES ‖  FI ‖  SV

Dimensions

Part No. Description Net weight A B C D E mm/ inch
80-47626-01 AquaT Standard Electric Super Compact. 12V 9.2 kg 340 635 330 450 215 mm
20 lbs 13.39 25.00 12.99 17.72 8.46 inch
80-47435-01 AquaT Standard Electric Compact. 12V 9.5 kg 340 680 380 450 215 mm
80-47435-02 AquaT Standard Electric Compact. 24V 21 lbs 13.39 26.77 14.96 17.72 8.46 inch
80-47436-01 AquaT Standard Electric Comfort. 12V 11 kg 365 755 360 475 260 mm
80-47436-02 AquaT Standard Electric Comfort. 24V 24 lbs 14.37 29.72 14.17 18.70 10.24 inch



  • Self priming, dry, height 0.6 meters (2ft)
  • Discharge height 1.2 meters (4ft)
