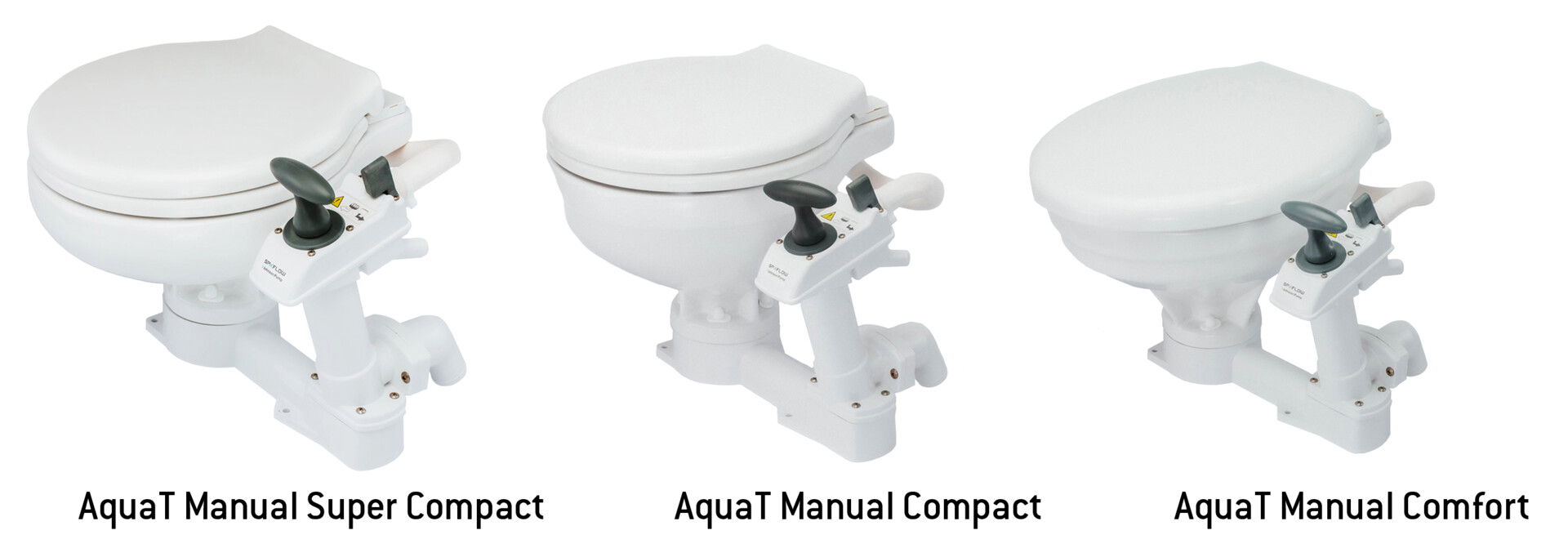

AquaT™ Manual Super Compact Marine Toilets

FEATURES

Priced competitively, the fine finish and design of these toilets is remarkable. Made from white vitreous porcelain, with corrosion resistant parts, the AquaT marine toilet is quiet, robust and easy to clean. It is probably fair to think of most toilets as commonplace products, but one look at the features and you are sure to see that the AquaT is far from ordinary. Quiet, hygienic and reliable, the AquaT marine toilet is perfect for almost any marine toilet room. Available in three models:

  • Comfort bowl with a larger comfortable oval seat
  • Compact bowl with a round seat - when installation space is limited
  • Super Compact bowl - smaller and lighter bowl, requiring less space



Marine Toilet Features

  • Limited 2 Year Warranty
  • Flexible hole pattern on the base, for easy substitution with the most common toilets on the market
  • Reversible pump mounting allows re-assembly for left hand operation by installer
  • Self-priming, double acting piston pump
  • Piston rod guide in brass for increased service life
  • Strong swirl action for efficient flushing
  • Smooth design for easy cleaning
  • Ergonomic handle
  • Spring assisted top valve closure for easier priming
  • Constant 38mm (1 1/2") bore waste path minimizes blockages
  • Double check-valves at full 38mm (1 1/2") bore prevent back flow
  • Multi-angle outlet for various installations
  • Accessible mounting points for faster installation
  • Standard fastenings, logic located, no need for special tools
  • Double sealed base plug for winter drain and easy cleaning access
Key Applications

The waste can be discharged either overboard (please abide by national or local restrictions), or into a treatment system or into an on-boar holding tank.

Note: SPX FLOW Johnson Pump manual toilets are designed specifically for marine use. Consult your SPX FLOW Johnson Pump retailer for advice about possible non-marine applications.









Toilet mounted below the waterline and discharging overboard.









Toilet mounted above the waterline and discharging overboard.









Toilet waste discharging into holding tank, discharging elbow below top of the holding tank at any time.









Toilet waste discharging into holding tank, discharging elbow always above top of the holding tank.

  • Specifications
  • Dimensions
  • Performance

Material Specifications

  • Soft closing, durable and hygienic plastic seats made of polypropylene
  • Hygienic white ceramic bowl for ease of cleaning
  • Pump and base molded in ABS or polypropylene, stainless steel fastenings, brass weights and neoprene seals and gaskets



Part numbers

Part. nr. Description
80-47625-01 AquaT Toilet Manual Super Compact
80-47229-01 AquaT Toilet Manual Compact
80-47230-01 AquaT Toilet Manual Comfort



See this product in the Johnson Pump Marine Catalog:  US ‖ GB  ‖ DE ‖ ES ‖  FI ‖  SV

Dimensions

Part. nr. Description Net weight A B C D E F mm/ inch
80-47625-01 AquaT Toilet Manual Super Compact 8.5 kg 340 605 300 400 215 460 mm
19 lbs 13.39 23.82 11.81 15.75 8.46 18.11 inch
80-47229-01 AquaT Toilet Manual Compact 8.3 kg 340 650 350 400 215 455 mm
18 lbs 13.39 25.59 13.78 15.75 8.46 17.91 inch
80-47230-01 AquaT Toilet Manual Comfort 11 kg 365 725 330 470 250 465 mm
24 lbs 14.37 28.54 12.99 18.50 9.84 18.31 inch



  • Self priming, dry, height 1m (3ft)
  • Discharge height 3m (9ft)
