Aqua Jet™ WPS Accessories

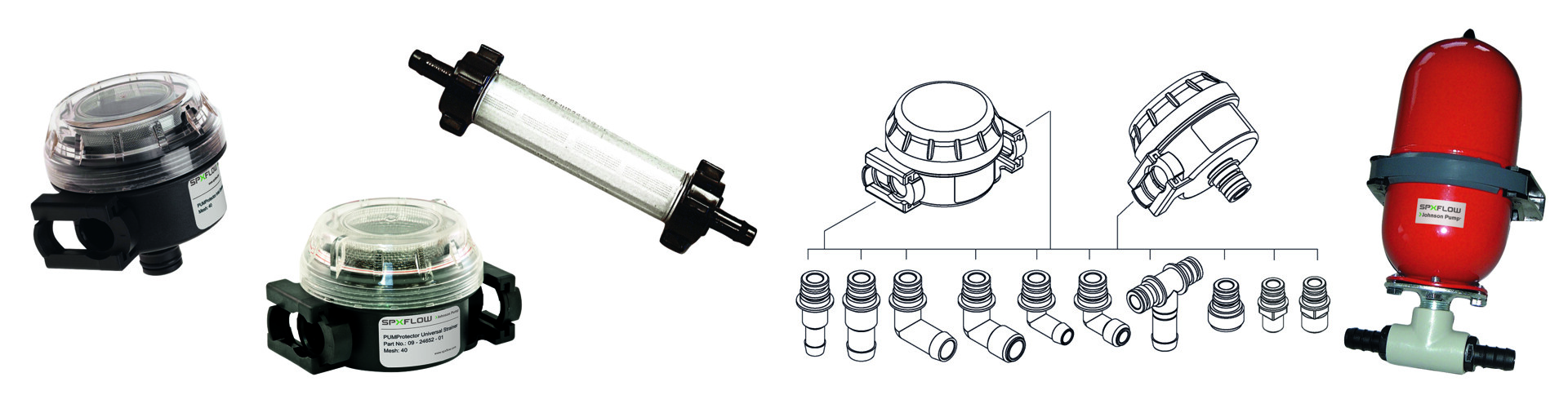

Johnson Pump Accessories for your WPS Water Pressure System Pumps and Wash Down WD Pumps, including PUMProtector Strainers, Klicktite™ Port Connectors and Accumulator Tanks
A Johnson Pump PUMProtector Inlet Strainer is recommended for installation together with a Water Pressure System (WPS) pump to protect the pump from debris, etc. For use at inlet side of Water Pressure System (WPS) pumps and Wash Down (WD) pumps in SPX Johnson Pumps Aqua Jet series; Mounted between water tank and pump. The filter is easy to disassemble for cleaning.
- Transparent covers for simple inspection
- Wide variety of KlickTite™ port connectors for simple installation and removal
- High quality materials for simple maintenance
- The design and connectors make it possible to remove the entire unit for thorough cleaning wherever it is most convenient
Material Specifications
| Strainer | Polyamide 66, black |
| Strainer Cover | Acrylic, clear (Part No. 09-36012) |
| Screen | Stainless steel, 40 µm mesh |
| O-rings | Silicone and EPDM |
Technical Data
| Part No. | Part No. USA | Description | Mesh | Max Liquid Temp. | Max Temp. for Drinking Water | KlickTite™ Connector |
| 09-24653-01 | 09-24653-02-CN | PUMProtector Inlet Strainer | 40 µm | +50°C – +120°F | +30°C – +85°F | Built-in KlickTite™ 1 x ½" hose / ⅜" BSP(NPT), 1 x ¾" hose / ½" BSP(NPT) |
| 09-36012 | 09-36012 | Strainer Cover (O-ring included) | ||||
Dimensions
| Diameter | 80 mm / 3.15" |
| Height | 60 mm / 2.35" |
| Weight | 0.15 kg / 0.33 lbs |
| Mesh size | 40 µm |
See this product in the Johnson Pump Marine Catalog: US ‖ GB ‖ DE ‖ ES ‖ FI ‖ SV
A Johnson Pump PUMProtector Universal Strainer is recommended for installation together with a Water Pressure System (WPS) pump to protect the pump from debris, etc. For use in any pump system of relevant flow size.; Mounted between water tank and pump. The filter is easy to disassemble for cleaning.
- Transparent covers for simple inspection
- Wide variety of KlickTite™ port connectors for simple installation and removal
- High quality materials for simple maintenance
- The design and connectors make it possible to remove the entire unit for thorough cleaning wherever it is most convenient
Material Specifications
| Strainer | Polyamide 66, black |
| Strainer Cover | Acrylic, clear (Part No. 09-36012) |
| Screen | Stainless steel, 20 and 40 µm mesh |
| O-rings | Silicone and EPDM |
Technical Data
| Part No. | Part No. USA | Description | Mesh | Max Liquid Temp. | Max Temp. for Drinking Water | KlickTite™ Connector |
| 09-24652-01 | 09-24652-02-CN | PUMProtector Universal Strainer | 40 µm | +50°C – +120°F | +30°C – +85°F | Built-in KlickTite™ 2 x ½" hose / ⅜" BSP(NPT), 2 x ¾" hose / ½" BSP(NPT) |
| 09-24652-03 | 09-24652-04-CN | PUMProtector Universal Strainer | 20 µm | +50°C – +120°F | +30°C – +85°F | |
| 09-36012 | 09-36012 | Strainer Cover (O-ring included) | ||||
Dimensions
| Diameter | 80 mm / 3.15" |
| Height | 60 mm / 2.35" |
| Weight | 0.15 kg / 0.33 lbs |
| Mesh size | 40 µm |
See this product in the Johnson Pump Marine Catalog: US ‖ GB ‖ DE ‖ ES ‖ FI ‖ SV
The Inline Strainer is recommended to be installed together with water pressure pumps to protect the pump from impurities. It is easy to dissemble for cleaning.
Technical Data
| Part No. | Description | Connection |
| 48-80035 | Inline strainer | ½" hose |
| 48-80036 | Inline strainer | ¾" hose |
Dimensions
| Total Length | 230 mm / 9.05" |
| Diameter | 32 mm / 1.25" |
See this product in the Johnson Pump Marine Catalog: GB ‖ DE ‖ ES ‖ FI ‖ SV
KlickTite™ Port Connectors are available for the most common hose diameters and make it possible to remove the entire unit for thorough cleaning wherever it’s most convenient. They also make it possible to drain the system quickly for effortless winterizing without the use of any tools.
Technical Data
| Part No. | Part No. USA | Ps/Package | KlickTite Connector |
| 09-46783 | 09-46957 | 2 | 2 x ½" hose and ⅜" BSP(NPT) |
| 09-46784 | 09-46958 | 2 | 2 x ¾" hose and ½" BSP(NPT) |
| 09-46939 | 09-46939 | 2 | 2 x 90°, ¾" hose |
| 09-47087 | 09-47088 | 2 | 2 x 90°, ½" BSP / 3/4" hose |
| 09-46938 | 09-46938 | 2 | 2 x 90°, ½" hose |
| 09-47026 | 09-47089 | 2 | 2 x 90°, ⅜" BSP(NPT) |
| 09-47096 | 2 | 2 x ⅜" BSP | |
| 09-47098 | 09-47098 | 2 | 2 x ½" BSP / ½"-14 NPSM |
| 09-47092 | 09-47092 | 1 | 1 x T-connection, ¾" barb |
| 09-47094 | 09-47094 | 2 | Garden Hose Adapter |
See this product in the Johnson Pump Marine Catalog: US ‖ GB ‖ DE ‖ ES ‖ FI ‖ SV
The use of an accumulator tank is recommended to ensure effective and reliable system function. With an accumulator tank incorporated in the system, the intervals between cut-in and cut-out will be longer when only small amounts of water are drawn off. The benefit is less wear and tear on the pump with fewer starts and stops. Pre-pressurized at 0.8 bar /12 psi.
Technical Data
| Part No. | Description | Connection |
| 09-46839-01 | Accumulator Tank 2 lit 15 mm. | ½” hose connection |
| 09-46839-02 | Accumulator Tank 2 lit 19 mm | ¾” hose connection |
Dimensions
| Volume | 2 L / 0.5 gal. |
| Height | 315 mm / 12.4" |
| Diameter | 160 mm / 6.3" |
| Weight | 1.2 kg / 2.7 lbs |
See this product in the Johnson Pump Marine Catalog: US ‖ GB ‖ DE ‖ ES ‖ FI ‖ SV
