Aqua Jet WD/Livewell Pump Kit 5.2

Product Type(s) : Livewell Pumps
Description :

Aqua Jets Washdown/Livewell pump kit makes it easy to add an Aqua Jet wash down pump and a Twin Port Aerator live well pump to any boat.

WHERE TO BUY

FEATURES

The Aqua Jet Wash Down/Livewell Pump kit makes it easy to add a wash down and livewell pump to any boat.

Twin Port Aerator Pump 500 GPH

  • Limited 3 Year Warranty
  • Capacities 500 GPH
  • Tapered inlet connects directly to the sea cock and the upper outlet port provides a continuous flow of water through the ¾" discharge to the live well.
  • Lower outlet port connects to a wash down pump through either a ½" or ¾" port.
  • New high pressure inlet seal easily handles the higher pressures created by high speed pickups commonly used.

Aqua Jet WD 5.2 Pump

  • Limited 3 Year Warranty
  • Up to 5 bar (73 psi) pressure
  • Whisper quiet operation
  • Five-chamber construction
  • Smooth flowing
  • Self-priming
  • Integrated pressure switch turns pump on and off automatically when the spray nozzle is opened and closed
  • Dry running without damage
  • Low power consumption
  • Easy, low cost maintenance
  • PUMProtector inlet strainer and trigger nozzle included as standard
  • Quick disconnect fitting
  • Hose connections for ½" hose. Both BSP and NPT connections included
  • Long service life

DIMENSIONS & SPECIFICATIONS

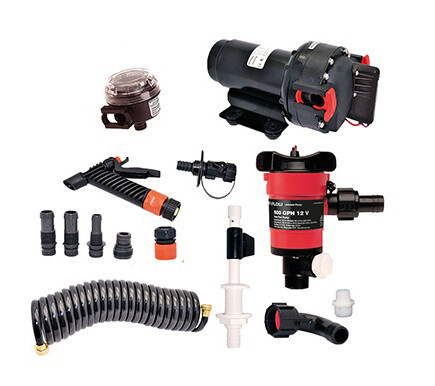

The Aqua Jet Washdown/Livewell Pump kit includes the following:

  • Aqua Jet WD 5.2, 5 bar (70 psi) pump, ½" NPT/hose ¾", ¾" GHT.
  • 500 GPH Twin Port live well pump, inlet ¾" NPTx1" length, Discharge; Livewell ¾" straight or 90° hose, WD ½" FNPT, ¾" MNPT or ¾" hose
  • Bulk head fitting with valve, - inlet ¾" hose, outlet ¾" GHT
  • 7.5 meters (25') of coiled wash down hose ¾" GHT
  • PUMProtector inlet strainer
  • Spray nozzle
  • Aerating head, ¾" hose
  • 2 illuminated panel switches

Technical Data

Part No. Part No. USA Description Capacity Pressure Cut-off Fuse size Connections
32-64634 64634 Aqua Jet WD 5.2 500 GPH 12V Livewell
    Aqua Jet WD 5.2 12V 20 L/min – 5.2 GPM 5 bar – 70 psi 20 A ½" NPT/hose ¾", ¾" GHT
    Twin Port Aerator Pump 500 GPH 12V 32 L/min – 500 GPH -   inlet ¾" NPTx1" length, Discharge; Livewell ¾" straight or 90° hose, WD ½" FNPT, ¾" MNPT or ¾" hose



See this product in the Johnson Pump Marine Catalog: US ‖ GB ‖ DE ‖ ES ‖ FI ‖ SV
