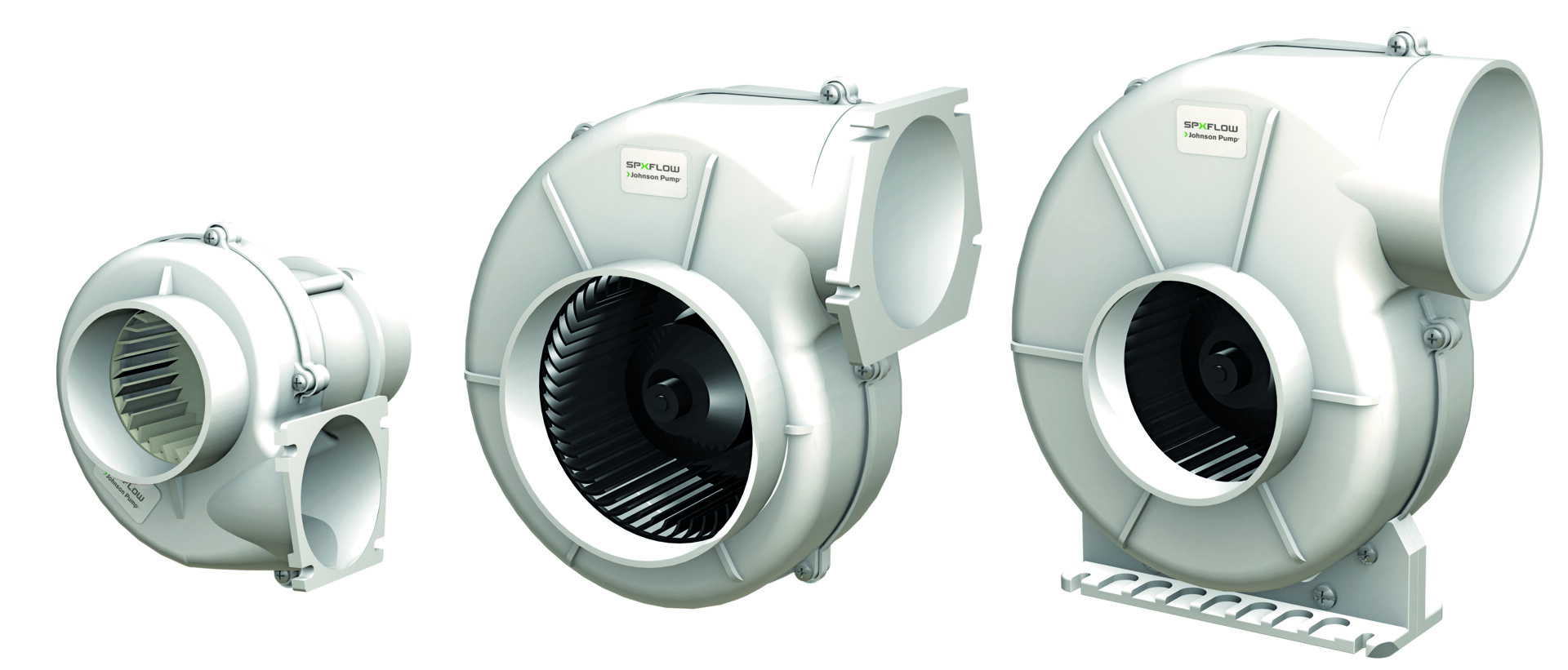

AirV - Radial Blowers

Model :
Product Type(s) :
Series :
Description :

FEATURES

  • Limited 1 Year Warranty
  • Flange Mount and Flex Mount design
  • Compact design easy to install, even in tight spaces
  • Double ball bearing motor
  • High-impact anti-shock ABS body
  • Capacity range 280 m3 per hour / 163 cfm to 1000 m3 per hour / 589 cfm
  • 12V or 24V motors
  • Double ball bearing motor
  • Mounts on any flat surface
  • Slip-on inlet ducting connection
  • Efficient high volume air flow
  • Low current draw
  • Shaft and screws in stainless steel

CE marked according to following standards: ISO 9097:1991 Marine (Small craft, Electrical fans)ISO 8846:1990 (Ignition protection)ISO 10133: 2000 (Electrical systems)EN 55014-1:2006 (2004/108EC)Complies with: N.M.M.A, USCG 183.410

  • Specifications

AirV Flange Mounted Technical Data

Part No. Description Capacity Dimensions H x W x L Port Connections Voltage Current [Amp]
Inlet Flange Outlet
80-47416-01 AirV 3-280 Flange Mount, 12V 280 m3/h, 163 CFM 198 x 171 x 195 mm / 6.89 x 6.3 x 7.68" Ø 75 mm / Ø 3" 92 x 80 /3.62 x 3.15" 12 V 3.9 A
80-47416-02 AirV 3-280 Flange Mount, 24V 280 m3/h, 163 CFM 197 x 173 x 195 mm / 6.89 x 6.3 x 7.68" Ø 75 mm / Ø 3" 92 x 80 /3.62 x 3.15" 24 V 2.5 A
80-47417-01 AirV 4-550 Flange Mount, 12V 550 m3/h, 324 CFM 277 x 259 x 160 mm / 10.91 x 10.08 x 6.61" Ø 100 mm / Ø 4" 146 x 118 /5.75 x 4.65" 12 V 12.5 A
80-47417-02 AirV 4-550 Flange Mount, 24V 550 m3/h, 324 CFM 277 x 259 x 160 mm / 10.91 x 10.08 x 6.61" Ø 100 mm / Ø 4" 146 x 118 /5.75 x 4.65" 24 V 7 A
80-47418-01 AirV 4-750 Flange Mount, 12V 750 m3/h, 441 CFM 277 x 257 x 181 mm / 10.91 x 10.08 x 6.73" Ø 150 mm / Ø 6" 146 x 118 /5.75 x 4.65" 12 V 14.5 A
80-47418-02 AirV 4-750 Flange Mount, 24V 750 m3/h, 441 CFM 277 x 257 x 181 mm / 10.91 x 10.08 x 6.73" Ø 150 mm / Ø 6" 146 x 118 /5.75 x 4.65" 24 V 8.5 A
80-47419-02 AirV 4-1000 Flange Mount, 24V 1000 m3/h, 589 CFM 278 x 258 x 203 mm / 10.91 x 10.08 x 8.19" Ø 150 mm / Ø 6" 146 x 118 /5.75 x 4.65" 24 V 15.5 A



AirV Flex Mounted Technical Data

Part No. Description Capacity Dimensions H x W x L Port Connections Voltage Current [Amp]
Inlet Flange Outlet
80-47420-01 AirV 4-550 Flex Mount, 12V 550 m3/h, 324 CFM 296 x 257 x 161 mm / 11.61 x 10.08 x 6.61" Ø 100 mm / Ø 4" Ø110 mm / Ø4.33" 12 V 12.5 A
80-47420-02 AirV 4-550 Flex Mount, 24V 550 m3/h, 324 CFM 296 x 257 x 161 mm / 11.61 x 10.08 x 6.61" Ø 100 mm / Ø 4" Ø110 mm / Ø4.33" 24 V 7 A
80-47421-01 AirV 4-750 Flex Mount, 12V 750 m3/h, 441 CFM 297 x 257 x 182 mm / 11.61 x 10.08 x 6.61" Ø 150 mm / Ø 6" Ø110 mm / Ø4.33" 12 V 14.5 A
80-47421-02 AirV 4-750 Flex Mount, 24V 750 m3/h, 441 CFM 297 x 257 x 182 mm / 11.61 x 10.08 x 6.61" Ø 150 mm / Ø 6" Ø110 mm / Ø4.33" 24 V 8.5 A
80-47422-02 AirV 4-1000 Flex Mount, 24V 1000 m3/h, 589 CFM 296 x 257 x 201 mm / 11.61 x 10.08 x 8.19" Ø 150 mm / Ø 6" Ø110 mm / Ø4.33" 24 V 15.5 A





See this product in the Johnson Pump Marine Catalog:  US ‖ GB  ‖ DE ‖ ES ‖  FI ‖  SV
