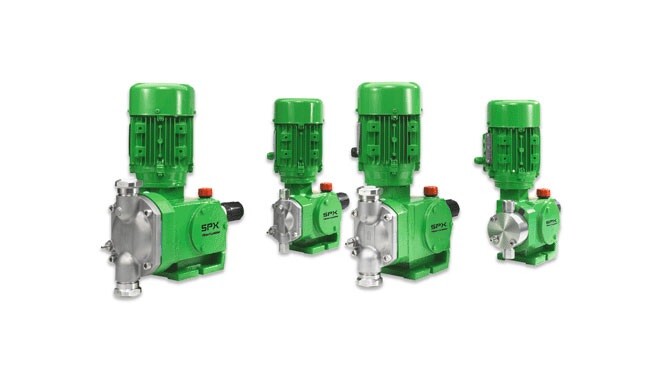

ProCam Smart Metering Pump
FEATURES
Standardisation means not only low investment, but as most of the components are identical and interchangeable, spares can be minimized leading to low storage cost and high availability. Performance is not compromised as the pump range uses the well proven ProCam design to achieve long lasting reliable operation, as expected from all our pumps. ProCam Smart is an uncompromised, standard, economic, general purpose metering pump with stainless steel liquid end, suitable for handling many liquids, including hazardous fluids. Advantages:
- Hermetically sealed pump design
- Diaphragm head with mechanically operated PTFE double-diaphragm
- Diaphragm status control by hose nipple
Materials (product wetted parts):
- Stainless Steel
Pump connections:
- Female thread DIN ISO 228
Pump gear:
- Robust cast iron gearbox
- Metallic gear components
Stroke adjustment:
- Manual
Type of gear:
- Integrated worm gear
Drive:
- Fixed speed
- Standard IEC motors, IP 55
Operating Pressure / Flow rate:
- up to 20 bar
- up to 500 l/h
Benefits
- Hermetically sealed pump design
- Diaphragm head with mechanically operated PTFE double-diaphragm
- Diaphragm status control by hose nipple
ProCam Smart Metering Pump in Energy Production
|
Applications |
Metered fluids |
|---|---|
| Chemical degassing |
Hydrazine, Levoxine, Helamin
|
| Oxygen scavenging |
Hydrazine, Levoxine, Helamin
|
| Corrosion inhibition |
Hydrogen peroxide(H2O2), Helamin
|
| Caustification |
Ammonia (NH3)
|
| Decarbonizing |
Lime
|
ProCam Smart Metering Pump in Water and Sewage Treatment
|
Applications |
Metered fluids |
|---|---|
| Flocculation |
Activated Silica (SiO2)
|
| Fluorodizing |
Fluorides
|
| pH-control |
Caustic (NaOH)
Lime Sulphuric Acid (H2SO4) |
| Oxidation |
Potassium Permanganate (KMnO4)
|
ProCam Smart Metering Pump General Applications
| Chemical Industry |
| Textile Industry |
| Paper Industry and Wood Processing |
| Plastic and Building Chemicals |
