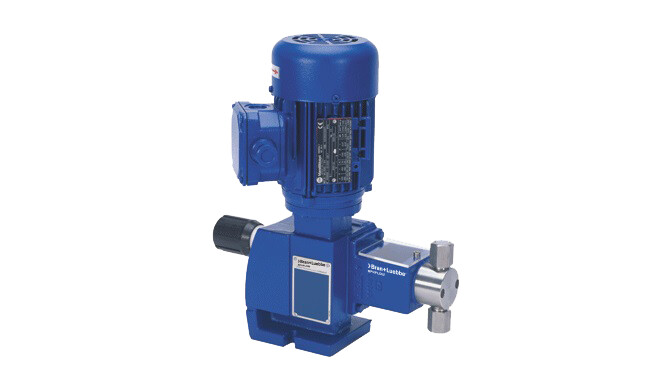

ProCam Plunger Metering Pumps
FEATURES
Economical and reliable, the robust and compact design of the ProCam plunger pump allows high operational security. At a glance:
- Economic metering of non-hazardous fluids
- Operating pressure up to 80 bar
- Flow rates from 0.16 to approx. 60 l/h
- Robust gear technology with proven lost motion design for continuousoperation at max. flow / pressure conditions
- Linear stroke adjustment with manual or electric options
- High operational security
General:
- Gear box in a rugged cast iron housing
- Integrated worm gear
- Splash lubrication
- Electric motor (IEC, IP55)
Standard:
- Single pump with plunger pump head
- Manual stroke adjustment
- Electric motor with fixed speed
- Materials for pump head and valve housing- Stainless steel
- Multiple pumps with up to 6 plunger pump heads are available
- Can be combined with ProCam diaphragm metering pump
- Electric stroke length adjustment (also with integrated controller)
- Electric motor with variable speed
- Hazardous area design (up to Zone 1, IIC, T4)
