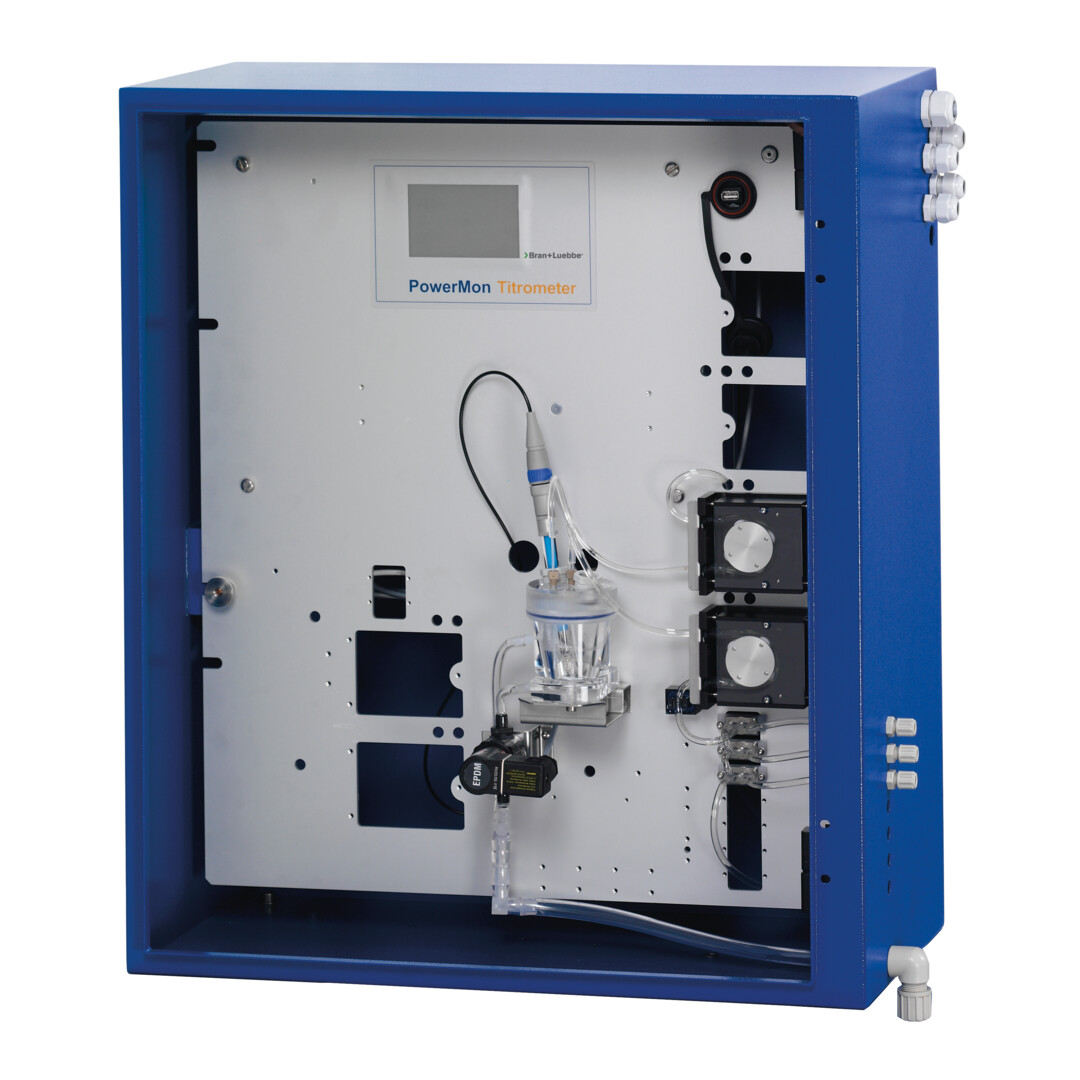

PowerMon Titrometer - Online Measuring Instrument
FEATURES
The PowerMon Titrometer is a versatile applicable online measuring instrument. It guarantees a permanent optimal water quality by the continuous supervision in the chemical industry, water and waste water treatment, in power stations and the paper industry.
Apart from higher precision and shortening of the measuring cycles the PowerMon offers a special highlight: For the measurement of most diverse parameters (e.g. oxygen, pH, redox, conductivity etc.) the connection of various sensors is possible!
For the individual sensors the PowerMon automatically takes over the functions of a transducer. It is also possible to set the separate results against each other.
A remote supervision enables the permanent control of the correct function of your plant. The highest possible data transfer over the interfaces, as well as the operation of the PowerMon via the touch screen user interface ensures an easy and user friendly operation.
The compact and modular design of the PowerMon can contain up to six on-line measuring points in one device and enables a space-saving and economic operation.
DIMENSIONS & SPECIFICATIONS
Technical Data
Technical Data
| Measuring methods | cyclic, volumetric |
|---|---|
| Measuring cycle | typ. 5-12 min. |
| Measuring range |
m- and p-value - 0-0,1 to 0-100 mmol/l Hardness - 0 - 0,025 to 0 - 50 mmol/l Chloride - 0 - 10 to 0 - 100 mg/l Further parameters and measuring ranges on request |
| Precision | 3% or better |
| Drift | typ. <0.5% MBE |
| Reagent Supply | min. 3 weeks |
| Number of measuring points | max. 6 |
| Output signal |
|
| Interfaces |
USB / Ethernet |
| Relay contacts |
4/12 potential free contacts free allocable |
| Digital inputs | 4/12 e.g. activating and deactivating of measuring points, system control |
| Sample |
pressure-free Temperature: 15 - 45°C (288 - 308 K) Flow: 3 – 10 l/h free from suspended matter and oil Connection: tube, flexible (ID 1.5 - 3 mm) |
| Drain | pressure-free tube, flexible (ID 10 mm) |
| Power supply |
85…264 VAC at 47…63 Hz |
| Power consumption: | max. 50 VA |
| Environmental temperature | 15 - 35°C (288 - 308 K) |
| Installation | wall-mounted |
| Protection class (EN 60529) |
|
| Weight |
housing with reagent cabinet 53 - 60 kg without reagents |
|
Dimensions (HEIGHT X WIDTH X DEPTH) |
housing: 700x600x320 mm with reagent cabinet: 1100x600x354 mm |
