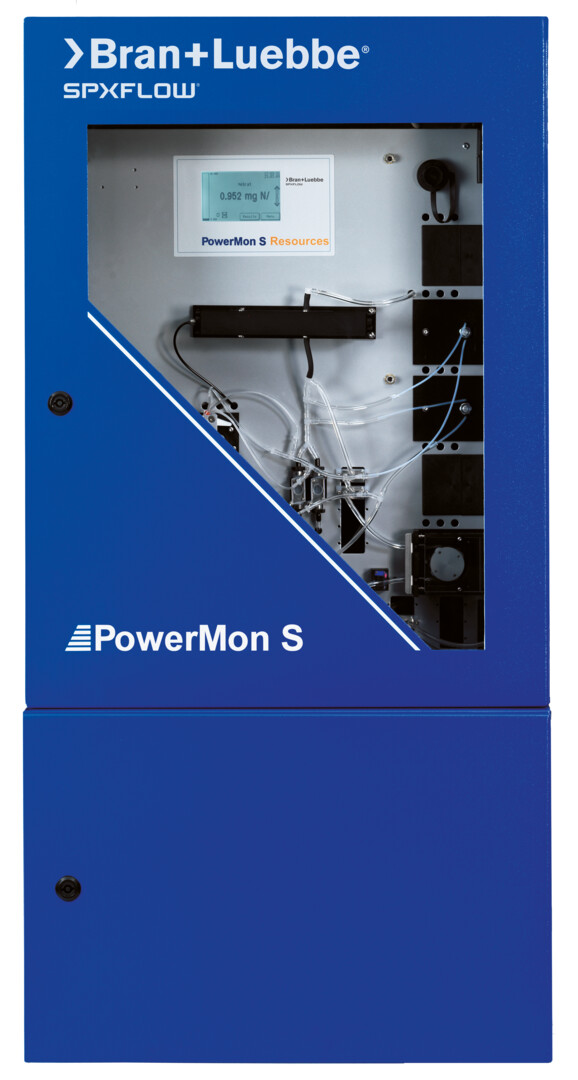

PowerMon S Online Analyzer

Product Type(s) : Analyzers

Description :

WHERE TO BUY

Key Applications

Technical Data

Measuring methods	Potentriometric
Measuring cycle	at least 6 min.
Measuring range	NO3 - 0 - 1 to 0 - 500 mg N/l F- 0 - 1 to 0 - 1.000 mg/l Cl- 0 - 0,1 to 0 - 10.000 mg/l NH4 + 0 - 2,5 to 0 - 1.000 mg/l K+ 0 - 1 to 0 - 10.000 mg/l Further parameters and measuring ranges on request.
Precision	typ. <5% of measuring range (end of value)
Drift	typ. <1% of measuring range (end of value)
Reagent supply	for approx. 3 weeks
Number of measuring points	max. 6
Output signal	0/4-20 mA max. load 500 OHM characteristic curve: linear/logarithmic galvanically isolated
Interfaces	USB / Ethernet Option: modem: analog, GSM, ISDN, UMTS Profibus DP, Modbus RTU and TCP
Relay contacts	4/12 potential free contacts free allocable (e.g. alarm contact)
Digital inputs	4/12 e.g. activating and deactivating of measuring points, system control
Sample	pressure-free Temperature: 15 - 45°C (288 - 318 K) Flow: 3 – 10 l/h free from suspended matter and oil Connection: tube, flexible (ID 1.5 - 3 mm)
Drain	pressure-free tube, flexible (ID 10 mm)
Power supply	85…264 VAC at 47…63 Hz
Power consumption:	~ 42 VA (max. 90 VA)
Environmental temperature	15 - 35°C (288 - 308 K)
Installation	wall-mounted
Protection class (EN 60529)	IP 65 ( electronics ) IP 54 ( with housing ) IP 21 ( with jacket )
Weight	housing with reagent cabinet 53 - 60 kg without reagents
Dimensions (HEIGHT X WIDTH X DEPTH)	housing: 700x600x320 mm with reagent cabinet: 1100x600x354 mm
