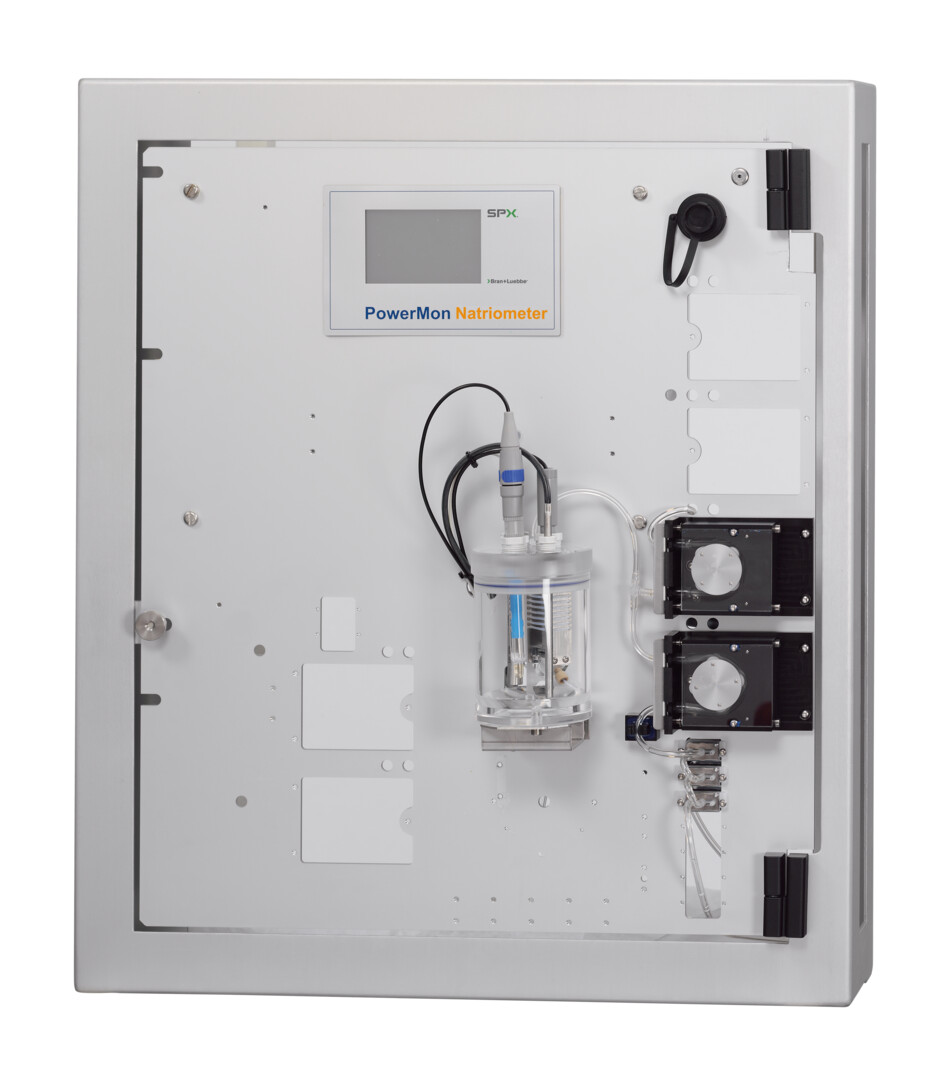

PowerMon Natriometer Online Analyzer
PowerMon Natriometer - Online Measuring Instrument
FEATURES
The PowerMon Natriometer is a versatile applicable online measuring instrument. It guarantees a permanent optimal water quality by the continuous supervision of the sodium content in ultra pure water or during water treatments.
Apart from higher precision and shortening of the measuring cycles the PowerMon offers a special highlight: For the measurement of most diverse parameters (e.g. oxygen, pH, redox, conductivity etc.) the connection of various sensors is possible!
For the individual sensors the PowerMon automatically takes over the functions of the transducers. It is also possible to set the separate results against each other.
A remote supervision enables the permanent control of the correct function of your plant. The highest possible data transfer over the interfaces, as well as the operation of the PowerMon via the touch screen user interface ensures an easy and user friendly operation.
DIMENSIONS & SPECIFICATIONS
Technical Data
Technical Data
| Measuring methods | Potentriometric |
|---|---|
| Measuring cycle |
at least 6 min. Measuring range in mg/l Na+0-0.001 to 0-1.000 mg/l |
| Precision | typ. <5% of measuring range (end of value) |
| Drift | typ. <1% of measuring range (end of value) |
| Reagent Supply | for approx. 8 weeks Number of measuring points max. 6 |
| Output signal |
|
| Interfaces |
USB / Ethernet |
| Relay contacts |
4/12 potential free contacts |
| Digital inputs | 4/12 e.g. activating and deactivating of measuring points, system control |
| Sample |
pressure-free Temperature: 15 - 45°C (288 - 308 K) Flow: 3 – 10 l/h free from suspended matter and oil Connection: tube, flexible (ID 1.5 - 3 mm) |
| Drain | pressure-free tube, flexible (ID 10 mm) |
| Power supply |
85…264 VAC at 47…63 Hz |
| Power consumption |
~ 42 VA (max. 90 VA) |
| Environmental temperature | 15 - 35°C (288 - 308 K) |
| Installation | wall-mounted |
| Protection class (EN 60529) |
|
| Weight |
housing with reagent cabinet 53 - 60 kg without reagents |
|
Dimensions (HEIGHT X WIDTH X DEPTH) |
housing: 700x600x320 mm with reagent cabinet: 1100x600x354 mm |
