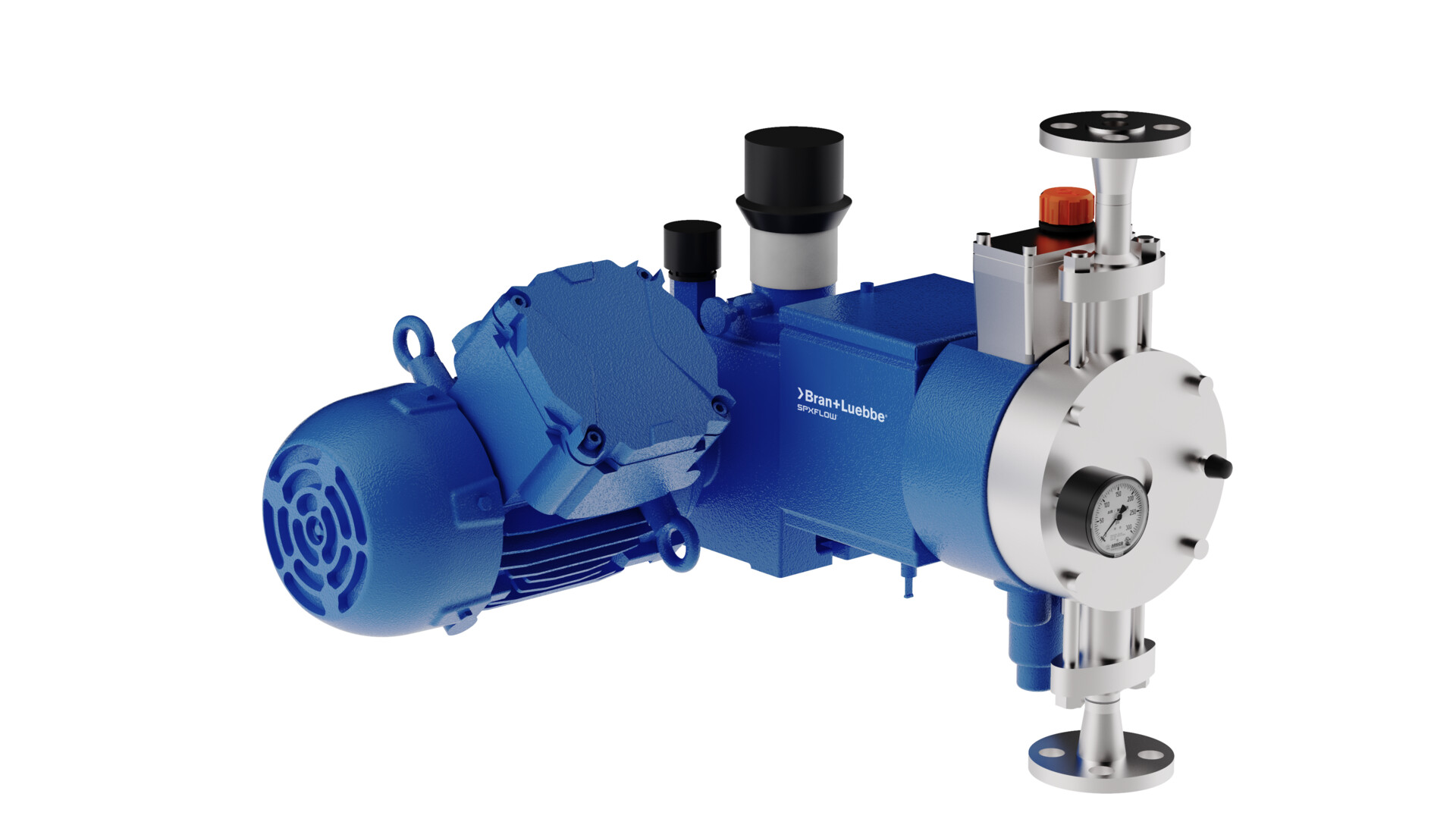

NOVADOS Express Metering Pump

FEATURES

NOVADOS Express  - The precision engineered standard option for outstanding quality with faster delivery and competitive pricing.  Our Metering Pumps comprise leak-free diaphragm pumps as well as plunger pumps. Materials of construction of liquid-wetted parts

  • Housings of stainless steel 316 low carbon type
  • Diaphragms of PTFE
  • Plungers of stainless steel or ceramic

Pump gear design

  • Worm gear with different reduction ratios
  • Splash lubrication
  • Stroke length adjustment via eccentric (Z-shape) crankshaft

Flow rate control

  • Manual

Drive

  • Electric motor with fixed speed

Installation and Operating Conditions*

  • Safe area
  • Ambient temperature range: from -10 °C up to +50 °C
  • Fluid temperature range: from -10 °C up to +93 °C

*These are limit values, please state actual conditions with inquiry. Benefits

  • Hermetically sealed pump design
  • Optimal capacity adaptation to widely varying production processes
  • Variable stroke length allows precise flow rate adjustment
  • Specifications

Flow Rate Table

  Pumphead type Diaphragm Plunger Material of displacement body Housing material PTFESt. Steel / Plastic St. SteelSt. Steel Ceramic or St. SteelSt. Steel or Plastic Flow rate at 200 min-1 max. operating pressure l/h GPM bar 1) PSI bar 1) PSI bar 1) PSI 0...1,7 0.007 - - - - 500 7,252 0...4,7 0.021 125 1,813 - - 500 7,252 0...6,7 0.029 - - 500 7,252 - - 0...12,1 0.053 350 5,076 298 4,322 298 4,322 0...18,8 0.08 200 2,901 - - - - 0...27,1 0.119 125 1,813 133 1,929 133 1,929 0...48,2 0.21 80 1,160 - - - - 0...75,4 0.221 50 725 48 696 48 696 0...118 0.52 32 464 - - - - 0...170 0.748 - - 21 305 21 305 0...193 0.85 20 290 - - - - 0...301 1.33 12 174 - - - - 0...332 1.461 - - 11 160 11 160 0...471 2.072 8 116 - - 8 116 0...591 2.600 6 87 - - 6 87 0...725 3.19 - - - - 5 73 0...748 3.29 5 73 - - - -
