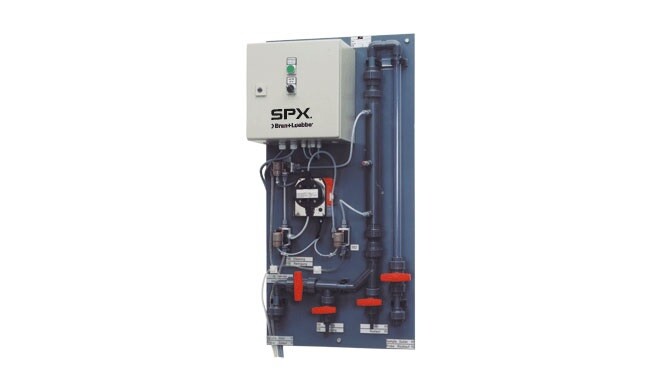

CeraClean Sample Analyzer
Industries : Chemical
Sample preparation system for automatic Monitors
FEATURES
CeraClean removes solids, colloids and high molecular weight interfering substances from dirty samples. CeraClean is used with the Bran+Luebbe Monitor 90 S and DiaMon, delivering a continuous supply of purified sample for analysis.
CeraClean advantages compared to other filters:
- Low dead volume gives rapid response time
- Robust construction for long life
- resistant to strong chemicals
- Longer cleaning intervals
- Smaller size
- Lower energy consumption
- Lower operating costs
- Supplied premounted for easy installation
CeraClean Operations
A sample stream of about 3 m3/h is pumped through the CeraClean.
Filtrate passes through the special filter tube and is pumped to the analyzer. Blockages are minimized by a special tangential flow through the filter, and automatic back-flushing extends the filter life to several weeks between cleaning.
CeraClean is specially designed for low energy consumption and low maintenance costs, which are provided by the automatic cleaning and a small feed pump.
A sample stream of about 3 m3/h is pumped through the CeraClean.
Filtrate passes through the special filter tube and is pumped to the analyzer. Blockages are minimized by a special tangential flow through the filter, and automatic back-flushing extends the filter life to several weeks between cleaning.
CeraClean is specially designed for low energy consumption and low maintenance costs, which are provided by the automatic cleaning and a small feed pump.
