VT+/HT+ Series - Scraped Surface Heat Exchangers
Multi-flexible configuration for robust and efficient heat transfer.
FEATURES
For efficient heating / cooling of medium viscosity products
The APV VT+/HT+ Scraped Surface Heat Exchangers (SSHE) provide exceptional performance for heating or cooling of a wide range of medium viscosity products including soups, dips, sauces, creams, soft cheese, chocolate, fruit / vegetable purees, baby food, fats and oils. Available as vertical (VT+) or horizontal (HT+) models.
Capabilities

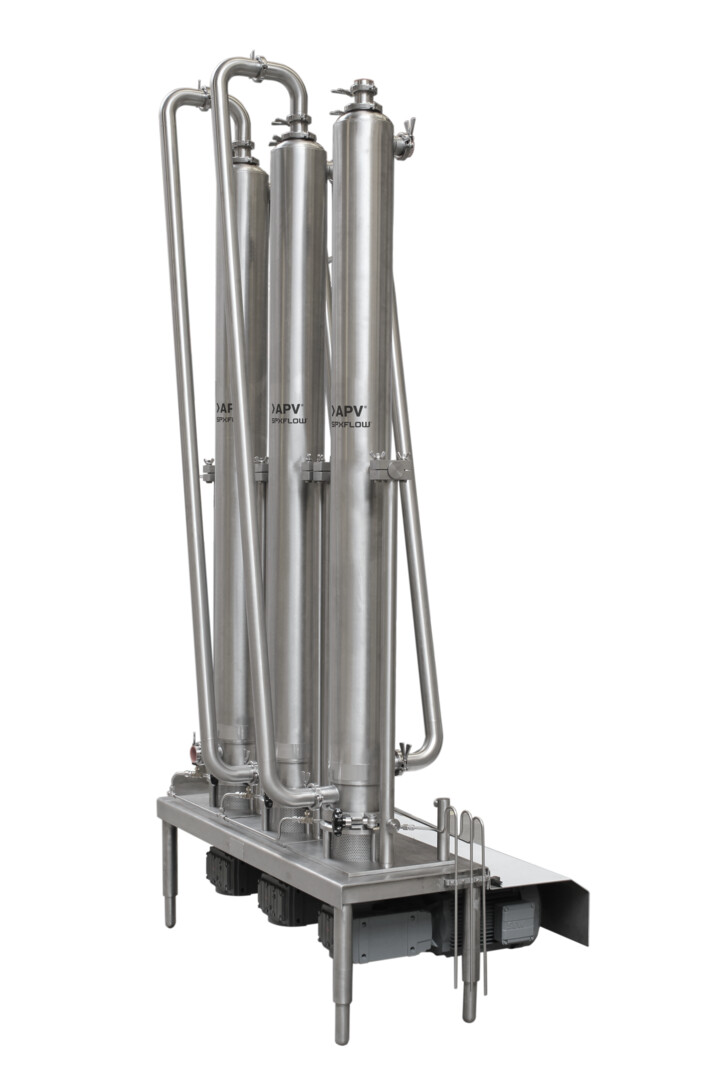

Up to about 10,000 l/h, depending on product, temperature, specific requirements and number of cylinders. Standard design Light and medium duty SSHE with vertical cylinder arrangement mounted on a base console under which a dasher gear motor is mounted.
Cylinder
Polished surface cylinder fitted to base plate with clamp and provided with welded-on jacket. Depending on the application, the cylinder jacket can operate with steam, water or glycol media. The cylinder is made of EN.1.4404 (AISI316L)
Dasher and scraper blades
The dasher has two rows of scraper blades which are fitted to pins to allow them to swing freely and scrape the total heat transfer area. The standard dashers are available in two diameter options, i.e. a low displacement dasher and a high displacement dasher. The top section of the dasher is supported by a bearing bush, positioned in the product area. The top bearing surface of the dasher is made of SAF quality steel for high level of abrasive resistance and both the bush and the dasher bearing surface are replaceable in case of excessive wear. The dasher is made of EN.1.4404 (AISI316L) and the scraper blades of food approved plastic (PEEK).
Shaft seal
The SSHE cylinder has only one shaft seal, located on the drive end at the bottom of the cylinder. The shaft seal is a double mechanical cartridge seal designed for water or steam flushing (aseptic design).
Cylinder and dasher lifting device
The VT+660 and VT+680 modules are provided with a manually operated lifting device, which lifts cylinder and dasher free of the shaft seal. Cylinder and dasher are turned into horizontal position for inspection and service. The VT+422 and VT+460 units have support brackets on which the cylinder can be fixed temporarily during inspection and sevice of scraper blades, seals etc.
Drive motor
The dasher is driven from a tooth wheel gear, powered by a high-efficient electric motor, all located under the SSHE base console.
Grouping of cylinders
Depending on the duty of the SSHE, cylinders are mounted in groupings of up to four on a common stainless steel base with all product and service interconnections made.
How the VT+/HT+ SSHE works:
Product flows through an inner tube which is surrounded by a jacket containing a heating or cooling medium. Blades, attached to the shaft in a staggered configuration, continuously remove product from the heat transfer tube walls to increase heat transfer efficiency, reduce fouling and ensure long runtimes.
- Heating or Cooling Medium
- Product
- Shaft
- Scraper Blade
- Heat Transfer Tube
- Insulation
- Stainless Steel Cover
The VT+/HT+ SSHEs offer an excellent price/performance ratio solution with flexible options to meet the needs of a wide range of medium to high viscosity products. Well-proven and reliable, these units are hygienically designed with very low dead volume. They are simple to operate and service and offer a low total cost of ownership with small, flexible layout / footprint and minimum ongoing maintenance overheads.
