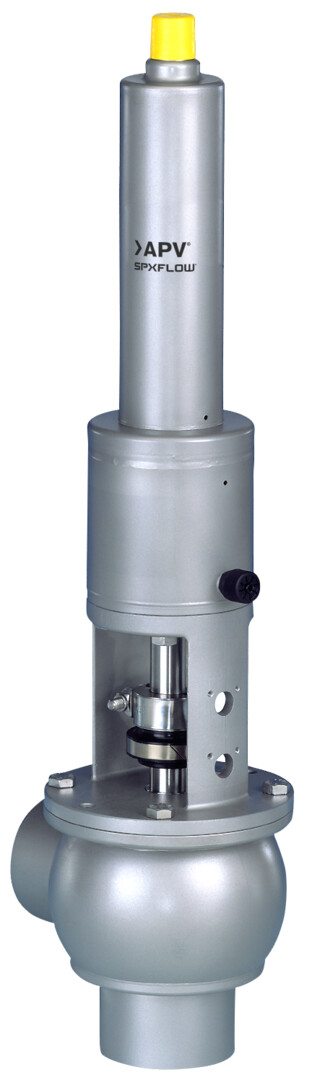

UF3 / UFR3 Series - Relief Valves

Product Type(s) : Relief Valves
Industries : Chemical

Description :

Protect installations against excess pressure.

WHERE TO BUY

Advantages

Optimum cleanability. No dead spaces in the valve body.
No stroke limitation by seat lift actuator; the full opening cross section is available during cleaning.
Very easy to service - only four screws must be released and the valve insert can be lifted out
3-A approved
ATEX compliant versions

In addition, all valves can be provided with a seal lifter, e.g. to relieve pressure during cleaning operations. Feedback signal proximity switches are mountable at the actuator yoke. High pressure version is available on request. All product-contact parts are made of AISI 316L / DIN EN 1.4404 stainless steel. The valves can be supplied in nominal diameters from DN 25 to 125 and ISO 1" to 4".

Key Applications

Field of application

SPX FLOW has especially developed the DELTA UF pressure relief valve to protect installations against excess pressure. If the set pressure is exceeded, the valve opens.
