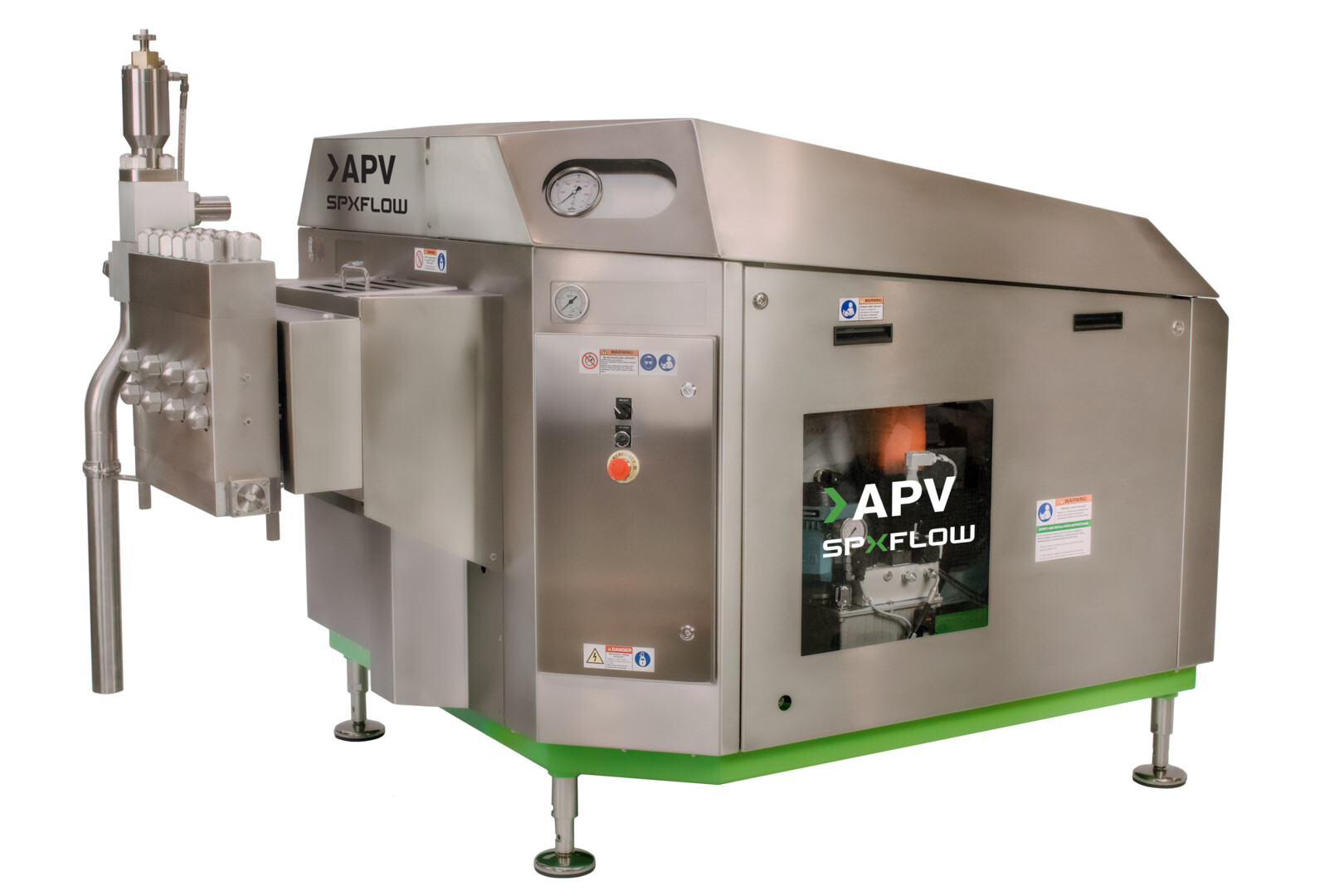

Rannie 57T and Gaulin 57T Series - High Pressure Homogenizers

Product Type(s) : General Homogenizers

Description :

The more modular and flexible design of the APV 57T makes it suitable for a wide range of applications in dairy, food, beverage, industrial and pharmaceutical industries.

Capacity :

Homogenizer Services

WHERE TO BUY

Combining the design features of our Rannie®, Gaulin® Liquid Ends, the new Power End with improved operator interface and controls simplifies routine maintenance with an emphasis on reliability in order to reduce total costs of ownership. Benefits: Optimal Operator Interface

All controls placed logically together
Gauges and other visual indicators are visible from the operating position
Direct view of key power end check points through a window
Modular electrical controls

High reliability

Internal gear transmission
Enhanced oil treatment and cooling system with oil filter as standard
Low center of gravity for reduced vibration

Maintenance friendly design

Easy access for servicing, reduced maintenance time
Low machine height for ergonomic access
Visual service indicators
Improved cooling and oil treatment indicators
Access to electric control box from the outside
Built-in belt tensioner

Balanced low speed crankshaft for reduced noise Features: The Liquid End Includes

Pressure gauges
Pressure relief valve
Weld-stub product connections
3-A sanitary design in stainless steel or duplex materials
Ball or poppet pump valves
Hard metal coated long life plungers
Hydraulic valve actuator for smooth and stable control
Single or two stage homogenizing valve, to meet your application requirements

The Power End Includes

Internal gear and self-adjusting belt tightener
Oil cooling system with external plate heat exchanger and temperature transmitter
Oil filter including alarm

Other Standard Features

All equipment wired to stainless steel control cabinet
Emergency stop
Stainless steel sanitary cladding
Inspection window for key operating indicators
Set of tools
Set of packings

Key Applications

Field of application

Dairy
Food
Beverage
Industrial
Pharmaceutical

Dimensions
Specifications

Dimensions	Length in / mm	Width in / mm	Height in / mm	Weight (incl. motor) lbs. / kg
Standard machine	89 / 2,260	56.5 / 1,435	56 / 1,425	5,725 / 2,600
Packed in crate	118 / 3,000	71 / 1,800	71 / 1,800	6,600 / 3,000
STANDARD INCL. LOW NOISE EXTENSION	111 / 2,820	64 / 1,630	66 / 1,680	6,850 / 3,100
Cubic measure of STANDARD crating: 9.72 m3

Rannie model 57T / Three-Piece Valve Housing Poppet and Ball Valves

TYPE	US UNITS		METRIC UNITS
TYPE	CAPACITY GPH	PRESSURE PSI	CAPACITY LPH	PRESSURE BAR
75.95	3,550	1,885	13,500	130
70.95	3,300	2,175	12,500	150
65.95	2,685	2,500	10,175	170
60.95	2,380	2,900	9,000	200
54.95	1,980	3,625	7,500	250
50.95	1,660	4,350	6,300	300
42.95	1,160	5,800	4,400	400
35.95	770	8,700	2,900	600
30.95	555	11,600	2,100	800
25.95	370	14,500	1,400	1,000
22.95	210	17,400	800	1,200
20.95	160	21,750	600	1,500

Gaulin model 57T / Mono-Block Valve Housing Poppet and Ball Valves

TYPE	US UNITS		METRIC UNITS
TYPE	CAPACITY GPH	PRESSURE PSI	CAPACITY LPH	PRESSURE BAR
POPPET TYPE VALVES
1.5P	4,225	1,500	16,000	100
2.0P	3,175	2,000	12,000	140
2.5P	2,650	2,500	10,150	170
3.0P	2,250	3,000	8,500	210
3.6P	1,875	3,600	7,100	250
4.3P	1,590	4,300	6,000	300
5.8P	1,160	5,800	4,400	400
BALL TYPE VALVES
1.5B	3,950	1,500	14,950	100
2.0B	3,000	2,000	11,350	140
2.5B	2,640	2,500	10,000	170
3.0B	2,200	3,000	8,300	210
3.6B	1,780	3,600	6,750	250
4.3B	1,450	4,300	5,500	300
5.8B	1,025	5,800	3,900	400
8.7B	715	8,700	2,700	600

Standard Options

Start/stop buttons
Alternative product connections e.g. tri-clamp, high-pressure outlet, dual inlet
Automatic hydraulic actuators and 4-20mA gauges for remote operation
Potentiometer-controlled electrical valves for hydraulic actuators
Plunger lubrication control package including flow switch and solenoid valve
Inlet pressure gauge with low pressure switch
Outlet pressure gauge or transmitter
Aseptic cylinder design
Sanitary pulsation dampener(s): inlet and outlet
Micro-Gap valve for increased efficiency and reduced energy consumption
Motor starter cabinet
Control cabinet with PLC or relay operation
Low-noise insulated extension for liquid end
Ceramic plungers
Choice of materials for cylinder block, pump valves, homogenzing valves, packings, etc.
Enhanced spare parts kit

Other Options in Request

Various enhanced liquid end block designs for special applications
Actuated pressure relief valve
Vibration sensors
Explosion-proof design
Electro-polished wetted parts
UFO – Oil Filtration system
Documentation packages for material traceability, certification and cGMP support
