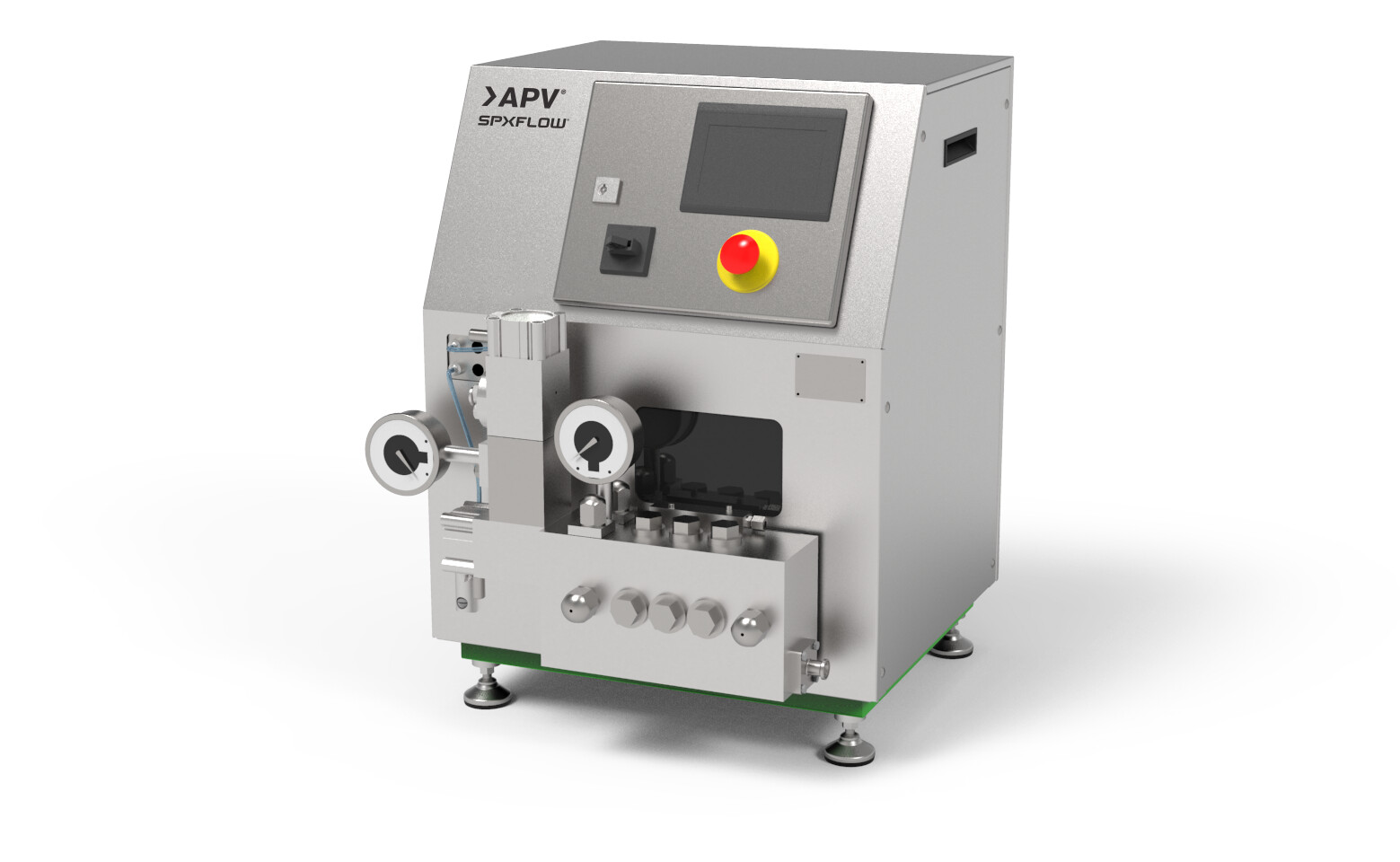

Pilot 4T Homogenizer
A compact, easy-to-use full-featured homogenizer for pilot or small-scale production.
Homogenizer Services
WHERE TO BUY
FEATURES
Combining immiscible liquids — like oil and water — can lead to breakthrough product enhancements but finding that value requires extensive testing, which must be validated in real-world scenarios. Running tests on full-production homogenizers, however, is not efficient nor is investing in full-production homogenizers without first having a market-ready, fully tested process in hand. The new APV® Pilot 4T Homogenizer solves this problem by offering full production capability in a compact unit that can be adjusted easily to accommodate a wide variety of flow rates. The Pilot 4T is available for pump, single- or two-stage homogenization in pilot or small-scale production. Its three models deliver full homogenization capabilities at flow rates ranging from 20 to 600 lph (5-158.5 gph). A three-plunger design maintains smooth operation and the integrated variable speed drive offers control capability unique for a small-scale system. The Pilot 4T also features a monoblock liquid end made from high-grade duplex stainless steel and high-efficiency hard-wearing tungsten carbide, Stellite or ceramic homogenising valves. The Pilot 4T is designed for CIP and SIP and features 3A construction and standard FDA product contact materials. Control options range from manual to touchscreen PLC with an interface to plant control systems for remote operation. Benefits: Versatility
- Small footprint
- Adjustable flow rates with built-in variable speed control
- Available for pump, single or two-stage operation
- Modular design, easy-to-add stages
- Suitable for test or continuous production
High performance
- Homogenization results comparable to full-scale production
- Three-plunger design provides maximum stability
- Broad flow and pressure range
Plug and play integration and ease of use
- Manual or touchscreen controls
- PLC option – choice of Allen Bradley or Siemens
- Direct drive transmission
- Built-in variable speed drive
- No starter and control cabinet required
Hygienic Design
- CIP or SIP Cleanability
- 3A construction
- Standard FDA product contact materials
The APV Pilot 4T homogenizer provides all the functionality of a full-scale homogenizer but can apply them in pilot projects running at low flow rates. Like a full-scale homogenizer, the Pilot 4T homogenizes immiscible liquids into an emulsion, operating like a positive displacement pump with a valve. It forces fluids at high pressures through a small gap in that valve. This increases velocity and decreases pressure causing a turbulence/pressure differential that disrupts and disperses particles.
Homogenization is used in many industries, but it is most common today in food and beverage, as food producers are capitalizing on the growing market for enhanced nutritional or plant-based products. Possible applications for low-flow rate homogenizers include:
- Nutrition and Health, especially
- Dairy
- Plant-based alternatives
- Food and ingredients
- Chemical
- Biotechnology
- Pharmaceutical
- OEM pasteurization, UHT or drying skids
Homogenization application objectives:
- Particle size control for smoother, finer emulsions
- High gloss finishes
- Improved stability to reduce needs for additives
- Improved water binding
- Enhanced color properties
- Uniform emulsions
- Creams and lotions that are easier to apply
The availability of low-capacity, low flow rate homogenizer provides new flexibility to research, develop and test, new ways to apply homogenization to add new value to products.
DIMENSIONS & SPECIFICATIONS
DIMENSIONS (L x W x H) Standard Machine 750 x 660 x 850 MM30 x 26 x 34” Mounted on Frame 750 x 745 x 1460 MM30 x 29.5 x 58” Packed in Crate 1360 x 1050 x 1300 MM54 x 41 x 51” Packed Volume 1.9 M3
