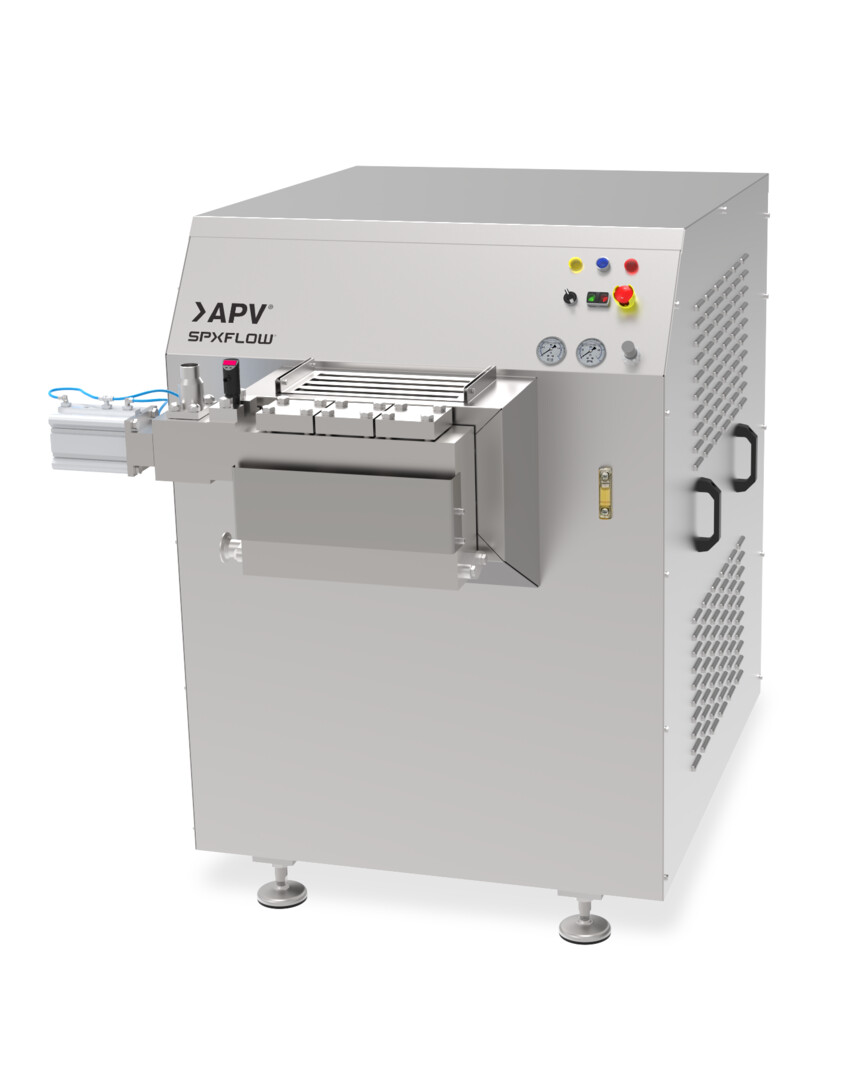

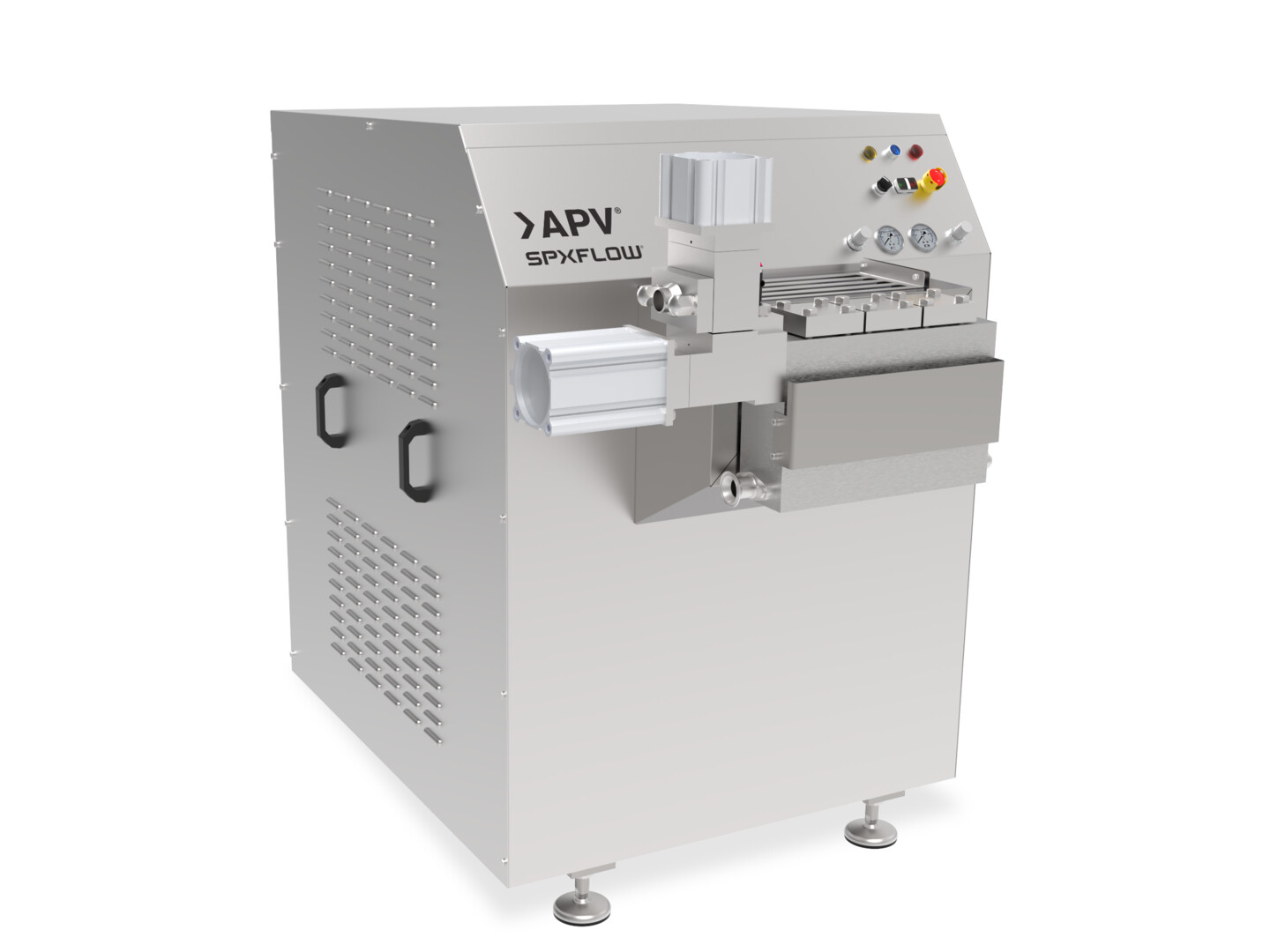

EQ 37T Homogenizer
Essential quality. Exceptional performance. A powerful, easy-to-use homogenizer for manually operated low capacity dairy and beverage applications.
FEATURES
APV homogenizers have been a global standard of quality for more than 120 years. And now we’ve engineered a homogenizer for manufacturers that want the best quality possible at an affordable price. The new EQ 37T can be configured as a pump, single- or two-stage homogenizer and comes with all the features you need for reliable performance.
The EQ 37T features a monoblock liquid end made from stainless steel, high-efficiency hard-wearing pump valves and homogenizing valves. The EQ 37T is designed for cleaning in place (CIP) and is fitted with FDA, EN1935:2004 and GB4806 product contact materials as standard.
Quality without Compromise
- Simplicity - Plug and Produce
- Integrated control panel for fast and simple installation
- Seamless integration with your existing processes
- Automatic water and air isolation valves included as standard
Performance you can trust
- Robust APV homogenizer construction
- Proven components for consistent and dependable operation
- Materials and options matched to dairy and beverage requirements
Peace of mind
- Designed for long operating life
- All service areas are easy to access
- Supported by SPX FLOW’s global aftermarket network
Standard Features
- Monoblock liquid end
- Ball type pump valves and seats in stellite material
- Manual pneumatic control
- Integrated over-pressure monitoring
- Integrated control cabinet
- Oil level indicator
- Stainless steel plungers
- Stainless steel cladding
- Automatic air and water isolation valves
- Weld connection
The APV EQ 37T homogenizes immiscible liquids into an emulsion, operating like a positive displacement pump with a valve. It forces fluids at high pressures through a small gap in that valve. This increases velocity and decreases pressure causing a turbulence/pressure differential that disrupts and disperses particles.
DIMENSIONS & SPECIFICATIONS

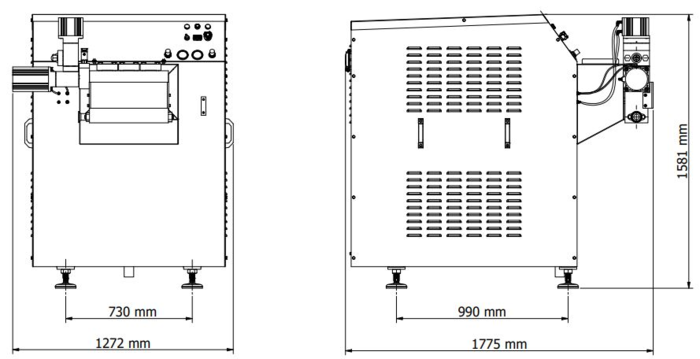

Dimensions
