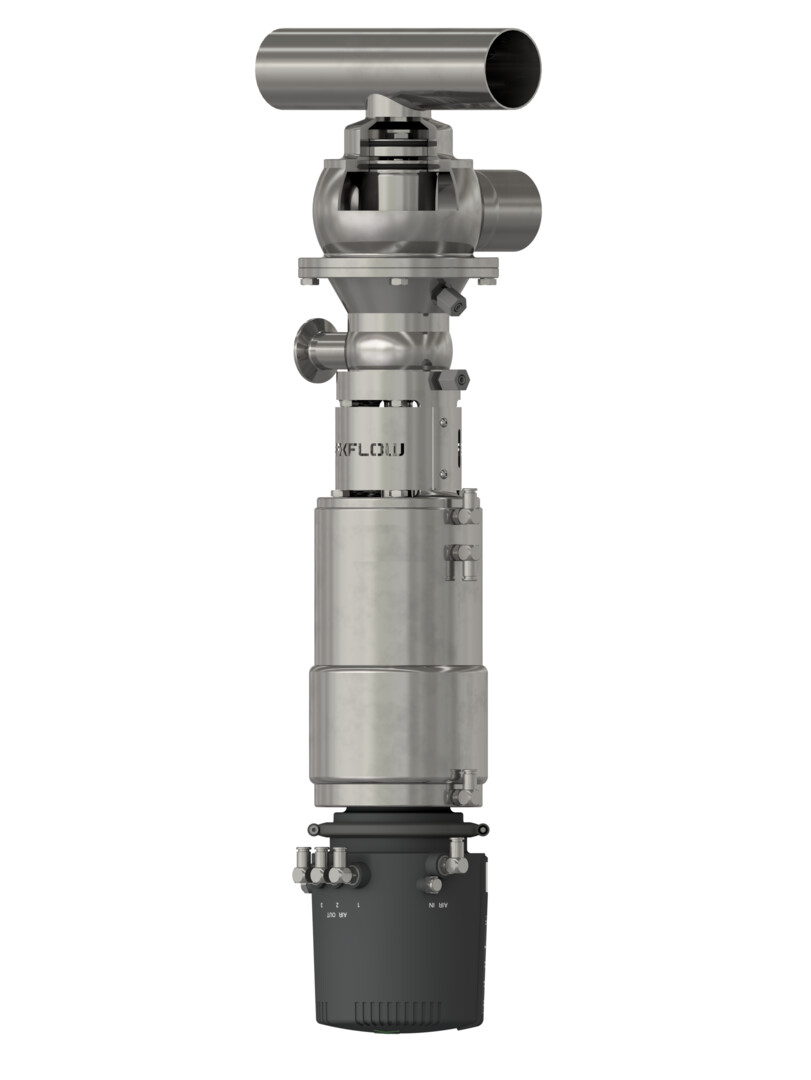

DP4 – Piggable Valve
Model :
Product Type(s) :
Series :
Product Type(s) :
Series :
Description :
FEATURES
High value, Low life cycle costs:
- Pig use enables valuable product recovery
- Pig use decreases downtime related to cleaning, and the costs associated with wastewater and CIP fluid
- Reduced inventory costs with same seal kit used on multiple size ranges such as one kit for 1.5” - 3.0” sizes
- Low air consumption and air supply requirements
- Leak drain with clamp connection for CIP fluid collection
- Long housing ports ease manifold building
Reliable performance:
- Design based on the proven D4SL model
- Long stroke for gentle product handling and low flow resistance
- Balanced design of lower shafts helps to prevent hydraulic blocking and enables flexible flow direction without slamming
- Heavy-duty bolted flange connection provides secure, controlled assembly/disassembly of valve insert
- No compressed air needed for removal and servicing
- Range of control units and bus communication for automated operation
Cleanability:
- Designed to the latest global hygienic standards
- Extensive cleaning of product contact seals via seat lifting of upper and lower shaft
- Cavity spray cleaning as standard
- Radial seal design provides minimal switching leakage
- External flushing of outside area of the lower shaft below the shaft seal
