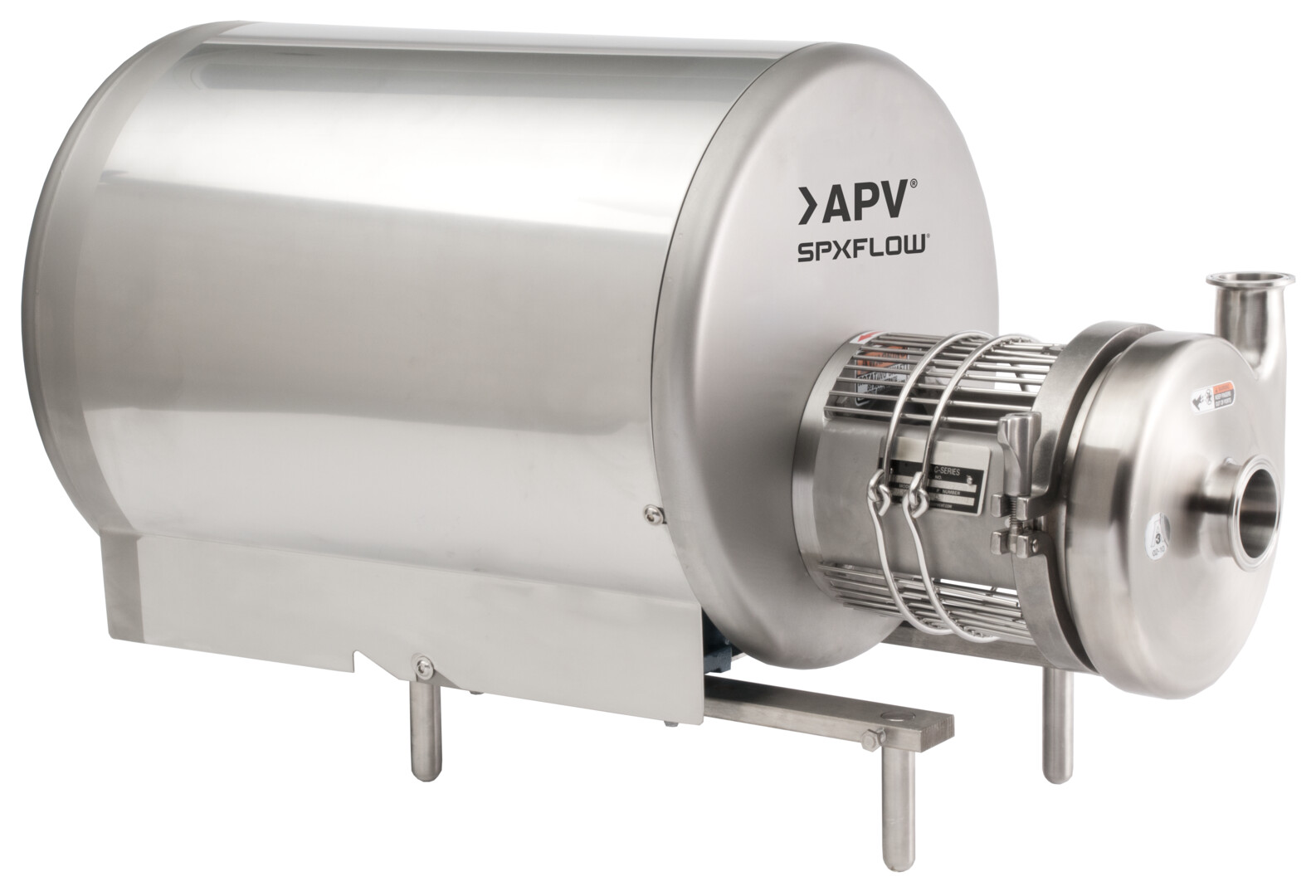

C-Series - Centrifugal Pumps
The versatile C-Series close-coupled pump replaces the Puriti C-Series pump...
FEATURES
This pump offers strong performance and competitive price/value within the lower spectrum of heavy-duty, centrifugal pump applications. It can be installed in a series without fear of seal failure from elevated inlet pressures, even with viscous products.
- Hydraulic balancing reduces pressure at sealing surface for less wear, greater efficiency
- Easy-cleaning, open type impeller delivers smooth pumping performance
- Enlarged inlets available for larger suction lines
- Standard CIP capability
- Pump and parts are interchangeable with other C-Series brands
Product Specifications
|
MODEL |
INLET |
OUTLET |
MAXIMUM IMPELLER SIZE |
MAXIMUM CAPACITY
|
MAXIMUM HEAD
|
||
|---|---|---|---|---|---|---|---|
|
1750 RPM
|
3500 RPM
|
1750 RPM
|
3500 RPM
|
||||
|
C100
|
1½"
(38mm) |
1"
(25mm) |
3.68"
(93mm) |
33 GPM
(7 m³/hr.) |
73 GPM
(17 m³/hr.) |
17 ft.
(5 m) |
55 ft.
(17 m) |
|
C114
|
1½"
(38mm) |
1½"
(38mm) |
4.00"
(102mm) |
74 GPM
(17 m³/hr.) |
148 GPM
(34 m³/hr.) |
18 ft.
(5 m) |
74 ft.
(23 m) |
|
C114
|
2"
(51mm) |
1½"
(38mm) |
4.00"
(102mm) |
84 GPM
(19 m³/hr.) |
180 GPM
(41 m³/hr.) |
17 ft.
(5 m) |
69 ft.
(21 m) |
|
C216
|
2"
(51mm) |
1½"
(38mm) |
6.00"
(152mm) |
145 GPM
(33 m³/hr.) |
280 GPM
(64 m³/hr.) |
42 ft.
(13 m) |
169 ft.
(52 m) |
|
C216
|
2½"
(64mm) |
1½"
(38mm) |
6.00"
(152mm) |
168 GPM
(38 m³/hr.) |
280 GPM
(64 m³/hr.) |
42 ft.
(13 m) |
169 ft.
(52 m) |
|
C218
|
2"
(51mm) |
1½"
(38mm) |
8.00"
(203mm) |
217 GPM
(49 m³/hr.) |
300 GPM
(68 m³/hr.) |
78 ft.
(23 m) |
317 ft.
(97 m) |
|
C218
|
3"
(76mm) |
1½"
(38mm) |
8.00"
(203mm) |
230 GPM
(52 m³/hr.) |
305 GPM
(69 m³/hr.) |
76 ft.
(23 m) |
305 ft.
(93 m) |
|
C328
|
3"
(76mm) |
2"
(51mm) |
8.00"
(203mm) |
416 GPM
(94 m³/hr.) |
635 GPM
(144 m³/hr.) |
74 ft.
(23 m) |
304 ft.
(93 m) |
|
C328
|
4"
(102mm) |
2"
(51mm) |
8.00"
(203mm) |
460 GPM
(104 m³/hr.) |
900 GPM
(204 m³/hr.) |
74 ft.
(23 m) |
313 ft.
(95 m) |
Model C-100
Unit Width Height
|
FRAME
|
A
in (mm) |
AA
in (mm) |
AB
in (mm) |
CP
in (mm) |
D
in (mm) |
E
in (mm) |
L
in (mm) |
O
in (mm) |
|---|---|---|---|---|---|---|---|---|
|
56C
|
7.34 (186)
|
0.75 (19)
|
--
|
15.00 (381)
|
3.50 (89)
|
3.00 (76)
|
2.76 (70)
|
6.88 (175)
|
|
143TC
|
7.41 (188)
|
0.75 (19)
|
--
|
15.19 (386)
|
3.50 (89)
|
4.00 (102)
|
3.76 (96)
|
6.88 (175)
|
Fluid Head
|
MODEL
|
INLET SUCTION
in (mm) |
OUTLET DISCHARGE
in (mm) |
X
in (mm) |
Y
in (mm) |
Z
in (mm) |
|---|---|---|---|---|---|
|
C-100
|
1.5 (38)
|
1 (25)
|
3.50 (89)
|
1.55 (39)
|
1.45 (37)
|
"S" Clamp connections only.
NOTE: Dimensions are for guidance purposes only. Contact your WCB Representative if more detailed measurements are needed.
Note: Waukesha Cherry-Burrell (WCB) curves are intended for use as an aid for preliminary selection of pumps by trained and qualified engineers. All selections must be reviewed by authorized WCB personnel prior to placing an order. WCB is not responsible for unauthorized or incorrect selections resulting from the use of these curves.
60 Hz - 1750 RPM Curves:
1.5" x 1" x 3.68" Model C-100 - 60 Hz Pump Curve, 95-07063 PDF || PDF
60 Hz - 3500 RPM Curves:
1.5" x 1" x 3.68" Model C-100 - 60 Hz Pump Curve, 95-07054 PDF || PDF
Model C-114
Unit Width Height
|
FRAME
|
A
in (mm) |
*AA
in (mm) |
AB
in (mm) |
CP
in (mm) |
D
in (mm) |
E
in (mm) |
J
in (mm) |
L
in (mm) |
O
in (mm) |
|---|---|---|---|---|---|---|---|---|---|
|
56C
|
7.34 (186)
|
0.75 (19)
|
--
|
18.64 (473)
|
3.50 (89)
|
3.00 (76)
|
10.38 (264)
|
6.22 (158)
|
6.88 (175)
|
|
140TC
|
7.81 (198)
|
0.75 (19)
|
--
|
19.08 (485)
|
3.50 (89)
|
5.00 (127)
|
10.69 (272)
|
6.22 (158)
|
6.88 (175)
|
|
182TC
|
12.19 (310)
|
1.00 (25)
|
7.13 (181)
|
22.06 (560)
|
4.50 (114)
|
5.50 (140)
|
12.00 (305)
|
6.78 (172)
|
8.69 (221)
|
*AA = Conduit Size
Fluid Head
|
MODEL
|
SUCTION
in (mm) |
DISCHARGE
in (mm) |
X
in (mm) |
Y
in (mm) |
Z
in (mm) |
|---|---|---|---|---|---|
|
C-114
|
1.50 (38) or 2.00 (51)
|
1.50 (38)
|
3.63 (92)
|
1.59 (40)
|
2.63 (67)
|
"S" Clamp connections only.
NOTE: Dimensions are for guidance purposes only. Contact your WCB Representative if more detailed measurements are needed.
Note: Waukesha Cherry-Burrell (WCB) curves are intended for use as an aid for preliminary selection of pumps by trained and qualified engineers. All selections must be reviewed by authorized WCB personnel prior to placing an order. WCB is not responsible for unauthorized or incorrect selections resulting from the use of these curves.
60 Hz - 1750 RPM Curves:
1.5" x 1.5" x 4" Model C-114 - 60 Hz Pump Curve, 95-07064 PDF || PDF
2" x 1.5" x 4" Model C-114 - 60 Hz Pump Curve, 95-07065 PDF || PDF
60 Hz - 3500 RPM Curves:
1.5" x 1.5" x 4" Model C-114 - 60 Hz Pump Curve, 95-07055 PDF || PDF
2" x 1.5" x 4" Model C-114 - 60 Hz Pump Curve, 95-07056 PDF || PDF
50 Hz - 1450 RPM Curves:
1.5" x 1.5" x 4" Model C-114 - 50 Hz Pump Curve, 95-07093 PDF || PDF
50 Hz - 2900 RPM Curves:
1.5" x 1.5" x 4" Model C-114 - 50 Hz Pump Curve, 95-07097 PDF || PDF
Model C-216
Unit Width Height
|
FRAME
|
A
in (mm) |
AA
in (mm) |
AB
in (mm) |
CP
in (mm) |
D
in (mm) |
E
in (mm) |
J
in (mm) |
L
in (mm) |
O
in (mm) |
|---|---|---|---|---|---|---|---|---|---|
|
56C
|
7.34 (186)
|
0.88 (22)
|
--
|
17.00 (432)
|
3.50 (89)
|
3.00 (76)
|
10.53 (267)
|
6.06 (154)
|
6.88 (175)
|
|
143TC
|
7.81 (198)
|
0.88 (22)
|
--
|
18.44 (468)
|
3.50 (89)
|
4.00 (102)
|
10.84 (275)
|
6.06 (154)
|
6.88 (175)
|
|
145TC
|
7.81 (198)
|
0.88 (22)
|
--
|
19.25 (489)
|
3.50 (89)
|
5.00 (127)
|
10.84 (275)
|
6.06 (154)
|
6.88 (175)
|
|
182TC
|
12.19 (310)
|
1.00 (25)
|
7.13 (181)
|
22.00 (559)
|
4.50 (114)
|
4.50 (114)
|
12.22 (310)
|
6.69 (170)
|
8.69 (221)
|
|
184TC
|
12.19 (310)
|
1.00 (25)
|
7.13 (181)
|
22.31 (567)
|
4.50 (114)
|
5.50 (140)
|
12.22 (310)
|
6.69 (170)
|
8.69 (221)
|
|
213TC
|
14.44 (367)
|
1.38 (35)
|
8.69 (221)
|
25.63 (651)
|
5.25 (133)
|
5.50 (140)
|
13.97 (355)
|
7.81 (198)
|
10.25 (260)
|
|
215TC
|
14.44 (367)
|
1.38 (35)
|
8.69 (221)
|
26.19 (665)
|
5.25 (133)
|
5.50 (140)
|
13.97 (355)
|
7.81 (198)
|
10.25 (260)
|
|
256TC
|
14.69 (373)
|
1.38 (35)
|
9.63 (245)
|
30.03 (763)
|
6.25 (159)
|
10.00 (254)
|
14.59 (371)
|
8.44 (214)
|
12.88 (327)
|
*AA = Conduit Size
Fluid Head
|
MODEL
|
SUCTION
in (mm) |
DISCHARGE
in (mm) |
X
in (mm) |
Y
in (mm) |
Z
in (mm) |
|---|---|---|---|---|---|
|
C-216
|
2 (51) or 2.5 (63)
|
1.5 (38)
|
4.50 (114)
|
1.91 (49)
|
3.69 (94)
|
"S" Clamp connections only.
NOTE: Dimensions are for guidance purposes only. Contact your WCB Representative if more detailed measurements are needed.
60 Hz - 1750 RPM Curves:
2" x 1.5" x 6" Model C-216 - 60 Hz Pump Curve, 95-07066 PDF || PDF
2.5" x 1.5" x 6" Model C-216 - 60 Hz Pump Curve, 95-07067 PDF || PDF
60 Hz - 3500 RPM Curves:
2" x 1.5" x 6" Model C-216 - 60 Hz Pump Curve, 95-07057 PDF || PDF
2.5" x 1.5" x 6" Model C-216 - 60 Hz Pump Curve, 95-07058 PDF || PDF
50 Hz - 1450 RPM Curves:
2" x 1.5" x 6" Model C-216 - 50 Hz Pump Curve, 95-07094 PDF || PDF
50 Hz - 2900 RPM Curves:
2" x 1.5" x 6" Model C-216 - 50 Hz Pump Curve, 95-07098 PDF || PDF
Model C-218
Unit Width Height
|
FRAME
|
A
in (mm) |
AA
in (mm) |
AB
in (mm) |
CP
in (mm) |
D
in (mm) |
E
in (mm) |
J
in (mm) |
L
in (mm) |
O
in (mm) |
|---|---|---|---|---|---|---|---|---|---|
|
145TC
|
7.81 (198)
|
0.88 (22)
|
--
|
19.44 (494)
|
3.50 (89)
|
5.00 (127)
|
10.91 (277)
|
6.31 (160)
|
6.88 (175)
|
|
182TC
|
12.19 (310)
|
1.00 (25)
|
7.13 (181)
|
21.94 (557)
|
4.50 (114)
|
4.50 (114)
|
12.28 (312)
|
6.94 (176)
|
8.69 (221)
|
|
184TC
|
12.19 (310)
|
1.00 (25)
|
7.13 (181)
|
22.50 (572)
|
4.50 (114)
|
5.50 (140)
|
12.28 (312)
|
6.94 (176)
|
8.69 (221)
|
|
213TC
|
14.44 (367)
|
1.38 (35)
|
8.69 (221)
|
25.06 (637)
|
5.25 (133)
|
5.50 (140)
|
13.28 (337)
|
7.31 (186)
|
10.25 (260)
|
|
215TC
|
14.44 (367)
|
1.38 (35)
|
8.69 (221)
|
25.88 (657)
|
5.25 (133)
|
7.00 (178)
|
13.28 (337)
|
7.31 (186)
|
10.25 (260)
|
|
256TC
|
14.69 (373)
|
1.38 (35)
|
9.63 (245)
|
29.72 (755)
|
6.25 (159)
|
10.00 (254)
|
14.66 (372)
|
8.19 (208)
|
12.88 (327)
|
|
284TSC
|
20.63 (524)
|
2.00 (51)
|
13.13 (334)
|
32.25 (819)
|
7.00 (178)
|
9.50 (241)
|
15.28 (388)
|
8.81 (224)
|
14.63 (372)
|
|
286TSC
|
20.63 (524)
|
2.00 (51)
|
13.13 (334)
|
32.25 (819)
|
7.00 (178)
|
11.00 (279)
|
15.28 (388)
|
8.81 (224)
|
14.63 (372)
|
*AA = Conduit Size
Fluid Head
|
MODEL
|
SUCTION
in (mm) |
DISCHARGE
in (mm) |
X
in (mm) |
Y
in (mm) |
Z
in (mm) |
|---|---|---|---|---|---|
|
C-218
|
2.00 (51) or 3.00 (76)
|
1.50 (38)
|
5.50 (140)
|
1.91 (49)
|
4.75 (121)
|
"S" Clamp connections only.
NOTE: Dimensions are for guidance purposes only. Contact your WCB Representative if more detailed measurements are needed.
Note: Waukesha Cherry-Burrell (WCB) curves are intended for use as an aid for preliminary selection of pumps by trained and qualified engineers. All selections must be reviewed by authorized WCB personnel prior to placing an order. WCB is not responsible for unauthorized or incorrect selections resulting from the use of these curves.
60 Hz - 1750 RPM Curves:
2" x 1.5" x 8" Model C-218 - 60 Hz Pump Curve, 95-07068 PDF || PDF
3" x 1.5" x 8" Model C-218 - 60 Hz Pump Curve, 95-07069 PDF || PDF
60 Hz - 3500 RPM Curves:
2" x 1.5" x 8" Model C-218 - 60 Hz Pump Curve, 95-07059 PDF || PDF
3" x 1.5" x 8" Model C-218 - 60 Hz Pump Curve, 95-07060 PDF || PDF
50 Hz - 1450 RPM Curves:
2" x 1.5" x 8" Model C-218 - 50 Hz Pump Curve, 95-07095 PDF || PDF
50 Hz - 2900 RPM Curves:
2" x 1.5" x 8" Model C-218 - 50 Hz Pump Curve, 95-07099 PDF || PDF
Model C-328
Unit Width Height
|
FRAME
|
A
in (mm) |
AA
in (mm) |
AB
in (mm) |
CP
in (mm) |
D
in (mm) |
E
in (mm) |
J
in (mm) |
L
in (mm) |
O
in (mm) |
|---|---|---|---|---|---|---|---|---|---|
|
182TC
|
12.19 (310)
|
1.00 (25)
|
7.13 (181)
|
22.63 (575)
|
4.50 (114)
|
4.50 (114)
|
13.09 (332)
|
7.25 (184)
|
8.69 (221)
|
|
184TC
|
12.19 (310)
|
1.00 (25)
|
7.13 (181)
|
23.19 (589)
|
4.50 (114)
|
5.50 (140)
|
13.09 (332)
|
7.25 (184)
|
8.69 (221)
|
|
213TC
|
14.44 (367)
|
1.38 (35)
|
8.69 (221)
|
25.75 (654)
|
5.25 (133)
|
5.50 (140)
|
14.09 (358)
|
7.63 (194)
|
10.25 (260)
|
|
215TC
|
14.44 (367)
|
1.38 (35)
|
8.69 (221)
|
26.31 (668)
|
5.25 (133)
|
7.00 (178)
|
14.09 (358)
|
7.63 (194)
|
10.25 (260)
|
|
256TC
|
14.69 (373)
|
1.38 (35)
|
9.63 (245)
|
30.41 (772)
|
6.25 (159)
|
10.00 (254)
|
15.47 (393)
|
8.50 (216)
|
12.88 (327)
|
|
284TSC
|
20.63 (524)
|
2.00 (51)
|
13.13 (334)
|
32.94 (837)
|
7.00 (178)
|
9.50 (241)
|
16.09 (409)
|
9.13 (232)
|
14.63 (372)
|
|
286TSC
|
20.63 (524)
|
2.00 (51)
|
13.13 (334)
|
32.94 (837)
|
7.00 (178)
|
11.00 (279)
|
16.09 (409)
|
9.13 (232)
|
14.63 (372)
|
|
324TSC
|
23.13 (588)
|
2.00 (51)
|
14.13 (359)
|
35.44 (900)
|
8.00 (203)
|
10.50 (267)
|
17.16 (436)
|
9.69 (246)
|
16.50 (419)
|
|
326TSC
|
23.13 (588)
|
2.00 (51)
|
14.13 (359)
|
35.44 (900)
|
8.00 (203)
|
12.00 (305)
|
17.16 (436)
|
9.69 (246)
|
16.50 (419)
|
*AA = Conduit Size
Fluid Head
|
MODEL
|
SUCTION
in (mm) |
DISCHARGE
in (mm) |
X
in (mm) |
Y
in (mm) |
Z
in (mm) |
|---|---|---|---|---|---|
|
C328
|
3.00 (76) or 4.00 (102)
|
2.00 (51)
|
5.50 (140)
|
2.22 (56)
|
4.75 (121)
|
"S" Clamp connections only.
NOTE: Dimensions are for guidance purposes only. Contact your WCB Representative if more detailed measurements are needed.
Note: Waukesha Cherry-Burrell (WCB) curves are intended for use as an aid for preliminary selection of pumps by trained and qualified engineers. All selections must be reviewed by authorized WCB personnel prior to placing an order. WCB is not responsible for unauthorized or incorrect selections resulting from the use of these curves.
60 Hz - 1750 RPM Curves:
3" x 2" x 8" Model C-328 - 60 Hz Pump Curve, 95-07070 PDF || PDF
4" x 2" x 8" Model C-328 - 60 Hz Pump Curve, 95-07071 PDF || PDF
60 Hz - 3500 RPM Curves:
3" x 2" x 8" Model C-328 - 60 Hz Pump Curve, 95-07061 PDF || PDF
4" x 2" x 8" Model C-328 - 60 Hz Pump Curve, 95-07062 PDF || PDF
50 Hz - 1450 RPM Curves:
3" x 2" x 8" Model C-328 - 50 Hz Pump Curve, 95-07096 PDF || PDF
50 Hz - 2900 RPM Curves:
3" x 2" x 8" Model C-328 - 50 Hz Pump Curve, 95-07100 PDF || PDF
