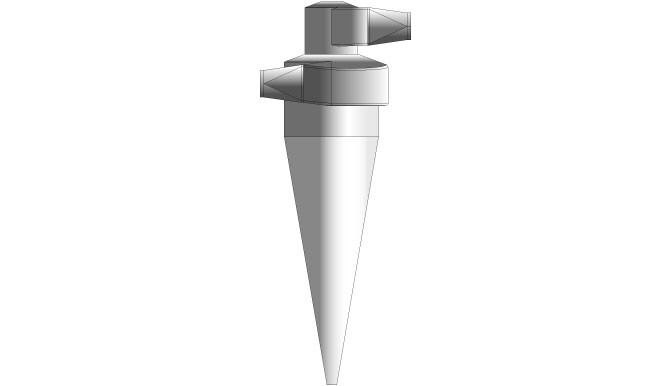

Cyclone Separators - Option
Product Type(s) : Spray Dryers
Description :
WHERE TO BUY
Cyclone separation is a method of removing particulates from an air stream.
FEATURES
Cyclone separation is a method of removing particulates from an air stream, without the use of filters, through vortex separation. Rotational effects and gravity are used to separate mixtures of solids and air.
Range of our Cyclone Separators:
- Can be installed in single, double, or multiple configurations
- Fines return can be designed at multiple locations
- Top of chamber
- To external fluid bed
| Approx. Powder Loss in Range of mg/Nm3 | |
|---|---|
| Baby Food |
90 - 120
|
| Skim Milk |
125 - 150
|
| Whole Milk |
90 - 120
|
| Whey |
250 - 280
|
| Permeate |
250 - 280
|
Safety
The cyclone separators can be equipped with explosion vents or suppression bottles
Hygiene
The cyclone separators are CIP'able with a number of required CIP-nozzles
Strength
The cyclone separators are manufactured with inlet and outlet stiffeners depending on the size
|

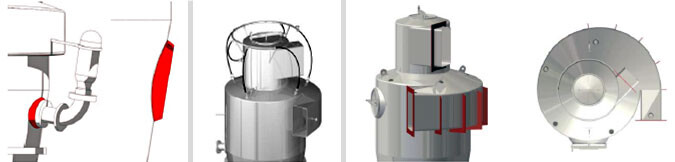

Welded Suppression Bottles |
CIP Ring Pipe and Spray Balls/Nozzles |
Inlet/Outlet Stiffeners |
|---|---|---|
 |
||
